DIY: Rebuild Brembo Calipers and Installation (No 56k!!!)

So I picked up some Front DC5r Brembo Calipers locally for a deal I couldn't pass up. Reason being it was really cheap, that was because it had to be built, it was all in pieces. The previous guy I bought it from got it powder coated but never installed it hence why it was in pieces.

Tools and Stuff you will need:
- Impact Wrench
- 3/4 Ratchet
- 19mm Socket
- 17mm Socket
- T-55 Star Bit
- T-05 Star Bit
- Bungee Cord
- 14mm Wrench
- 11mm Wrench
- Steel Brush
- Brake Cleaner
- Clean Towels
- Brake Fluid
- Blue Thread Lock
- Anti-Seize

This is just a guide and may not be in the order you chose to do it. There may be other ways to do it but this is my way of doing it and hold no responsibility for any damage or injuries and occur.

Step 1: Lay out all your caliper parts neatly to see if your missing anything and then proceed to clean everything and remove all the dirt, brake dust, etc.




Step 2: Grab a bottle of brake fluid you plan on using in your car or whats already in your car. I used Motul 5.1, and find something small to pour some brake fluid into, I used a bottle cap.

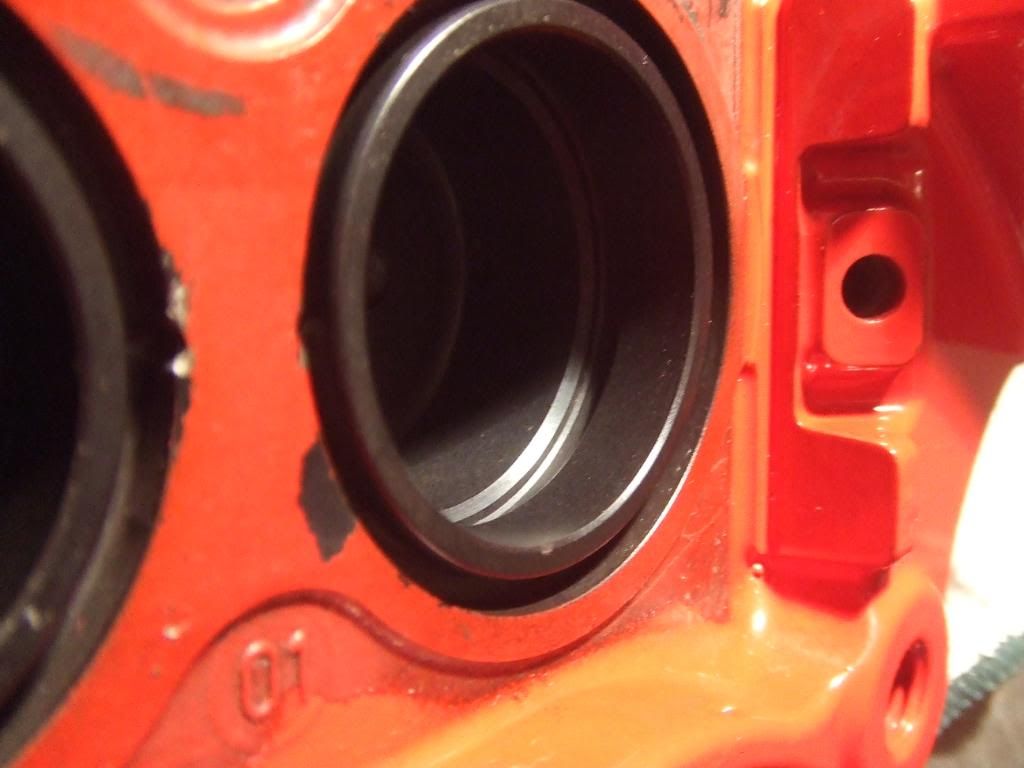

Step 3: Grab one of the O-Rings and lubricate it with some brake fluid. Just put some on your finger and rub it all around the O-Ring. Look inside the piston hole and you will see a little rib, that's where the O-Ring is going to sit.
Note: Notice the O-Rings have 2 Sizes, the large one and the smaller one, then look at the caliper piston hole, notice how 1 piston is larger than the other. Large O-Ring goes in large hole and Small O-Ring goes in small hole.



Be careful not to tear or rip or damage the O-Ring in any way


In


Step 4: Repeat the above step for all 4 halves of the caliper.

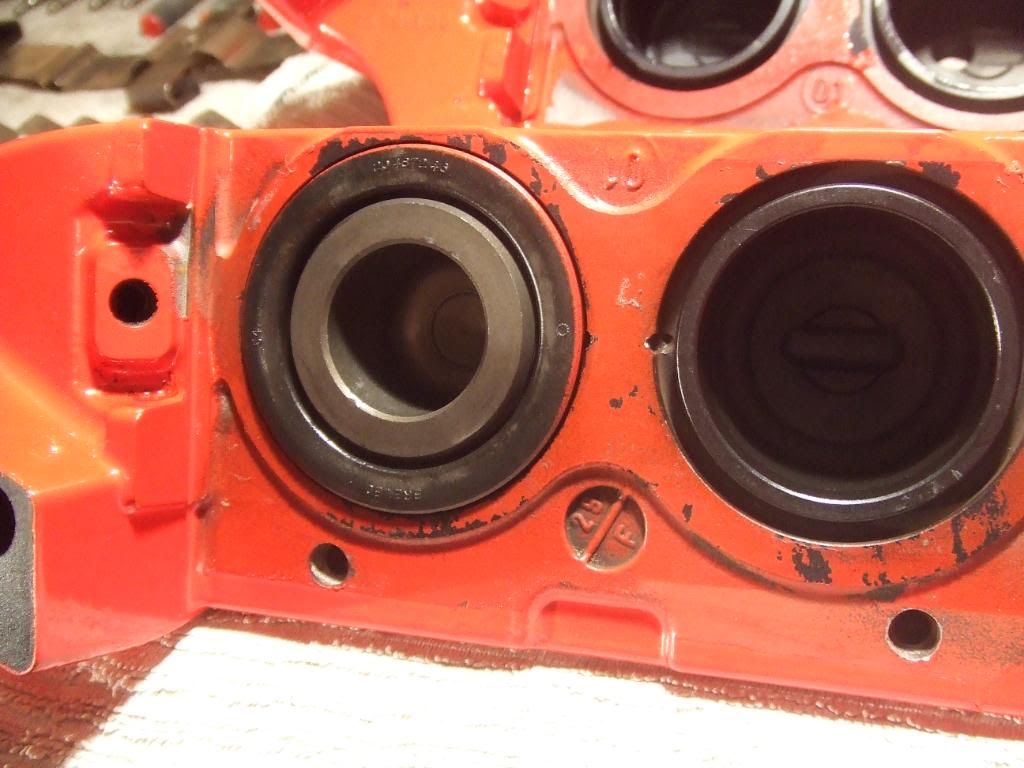

Step 5: Time to insert the Pistons into the caliper. Grab a piston and a rubber piston seal. Lubricate the Piston seal with brake fluid and be generous, don't stinge on the brake fluid. Then slowly press the seal onto the piston without over stretching it and doing damage to the seal. Than lubricate the Piston all over and the hole the piston is going into and slowly slide it into the correct hole in the caliper.
Note: Once again notice the difference in sizes of the piston. So use the correct seal for the correct piston size.







Finished! Now repeat once again for the other pistons.



Note: Make sure everything is seating properly!!

Not seated Properly.


Properly seated.


Almost Done!


Step 6: Time to install the brake pad sliders now. Grab some blue thread lock and thread lock the screw holding the slider bracket in place.





Finished!



Step 7: Time to install the small o-ring for the fluid passage between the caliper halves. Take a look at both caliper halves,

Notice how one has a small lip to it,



Now take a look at the o-ring,


This is how it should go in according to the lip on the caliper halves.



Now do the same to the other side and now your done.


Step 8: Time to assemble the caliper halves, anti-seize the 4 bolts holding the caliper halves together.




Torque them down by hand with the larger T-55 bit starting from the center outwards.


Repeat for the other 2 halves and then your finished!


Almost!


Step 9: Now time to screw on the bleeder screw. Grab a 11mm wrench or long socket and and tighten all 4 of them nice and snug but do not over torque these.



Finished!



Now you really are finished with putting together your DC5r Brembos. Now pray they do not leak. lol.



Now to install the DC5r Brembos!!! WOOOOoooo

What I'm replacing,

Yes, I know. My tires a little low on air........




I decided to try something different and wanted something a little more suttle...... ..boy was I wrong.

Step 1: Jack up the front of the car and put jack stands under the front jacking points and rest the car on the jack stands.
Note: DO NOT work with just the hydraulic jack only!




Step 2: Remove the 2 front wheels.



Step 3: Grab a 19mm (or 17 mm if your replacing your stock OEM calipers) and undo the upper caliper bracket bolt and then do the same for the lower bolt.




Step 4: Bungee cord the caliper to your upper control arm so you don't put stress on your brake lines by letting it hang.




Step 5: Remove your brake rotor and place in safe area where you won't step on it...........



Step 6: Once you remove your brake rotor, inspect the surface of your hub to see if there are any rust on it. If there is, remove it with a steel brush or you can grind it off. But I chose not to use a grinder because it was only a little, so I used a stiff steel brush.



Step 7: Anti-seize the center hub where the center bore of the rotor meets the hub. Put your rotor on and screw on the 2 countersunk screw to hold the rotor in place.



Step 8: place the caliper on your knuckle with the bleeder screws facing up. Grab the 12x1.75 bolts used to hold the caliper onto the knuckle and anti seize the bolt before threading in. Then do the same for the bottom and then torque them.

Note: The OEM Caliper bolts will not fit, I believe they are 12x1.25 so the thread pitch is different. Your going to have to pick up some new bolts which are 12x1.75 which is the same pitch as the Brembo's.






Step 9: Take a 14mm wrench and undo the brake line banjo bolt from the Ksport Caliper which is still bungeed to your control arm and thread into the bolted on Brembo Caliper.
Note: There are 2 washers on the bolt so be careful not to lose them or your brakes will leak from the brake lines. Also when you undo the bolt from the caliper, brake fluid will start dripping out so make sure you have something under to catch it.





Step 10: Brake Cleaner everything to remove any brake fluid that may have got on the caliper.



Step 11: Grab your Brake Pads, I'm using Hawk HP Plus. Anti-seize the sides and be sure not to get any on the surface of the brake pad. Anti-seize the rear of the pad also in a figure 8.




Step 12: Slide the Brake Pads into the Caliper with the Metal Indicator on the inside.



Step 13: Press in one of the holding pins on the top and anti seize the pin.



Step 14: Anti-seize the bracket used to hold the brake pads in place. Anti-seize the bracket where the holding pins make contact with the bracket, see picture.



Step 15: Slide the bracket under the top pin and while pressing down and holding pressure on the bracket against the pad and insert the second pin at the bottom and press in place. Repeat on the other side.



Step 16: Now you are done. Bleed your brakes which I'm not going to cover because there are lots all over the interwebs.



Step 17: Add required spacers depending on the offset and spoke design of your wheels.




Step 18: Put your wheels back on and torque them to spec.






The Secret and Parts List for this Swap.

I've spent hours searched the web for information about these caliper and I don't know what everybody was talking about have problems and "this will not fit" and "that will not fit" and "there is no way to do this and that". Although that was for a DC5. The Rotor on the DC5r is different then the USDM DC5 so the caliper will not bolt on without interfering with the rotor. So therefore we will have to find a rotor with a offset that will place the disc perfectly where it should be. Luckily Honda S2000 Rotors will work perfectly. Anybody who decides to do this will have 4 piston from brakes and a larger brake rotor. The stock 4 Cyl rotors are 10.8in and the V6's are 11.1in and the S2000 rotors are 300mm........whatever that equals to in inches, 12.8 I think........

You can order direct from japan and get the OEM DC5r pads for the Brembo's and pay crazy money for it or you can use Nissan 350z Pads. It must be from a 350z with the optional Brembo Track Package.

Parts List:

- (2) Front S2000 rotors (any year will do)
- DC5r Brembo Calipers
- 2005 Nissan 350z (With the optional Brembo Package) Brake Pads.
__________________

Last edited by simon_y; 11-03-2010 at 10:38 PM.
Reply With Quote
  #2
Old 11-03-2010, 11:12 PM
CG6Lemon's Avatar
CG6Lemon CG6Lemon is offline
Detailing Enthusiast


Points: 40,651, Level: 62 Points: 40,651, Level: 62 Points: 40,651, Level: 62
Activity: 0% Activity: 0% Activity: 0%

Join Date: Jun 2008
Location: S.F Bay Area, CA
Posts: 7,683
Rep Power: 42
CG6Lemon is somewhat reliable
Member Photo Albums
Send a message via Yahoo to CG6Lemon
Re: DIY: Rebuild Brembo Calipers and Installation (No 56k!!!)

nice. awesome detailed thread and info.
__________________

DetailedByPrecision
Paint Correction - Paint Coatings - Auto Detailing
Serving San Francisco, CA Bay Area
Phone: 415-601-4291
Email: Lim@DetailedByPrecision.com
Follow us on: Facebook
https://www.facebook.com/DetailedByPrecision
Follow us on: Instagram
https://www.instagram.com/detailedbyprecision
Reply With Quote
  #3
Old 11-04-2010, 01:37 AM
purpleaccord purpleaccord is offline
Member
Points: 5,387, Level: 21 Points: 5,387, Level: 21 Points: 5,387, Level: 21
Activity: 0% Activity: 0% Activity: 0%

Join Date: May 2009
Location: charlotte
Posts: 63
Rep Power: 0
purpleaccord is an unknown quantity at this point
Re: DIY: Rebuild Brembo Calipers and Installation (No 56k!!!)

wow cool info dude, what you gonna do with the ksport caliper? anyway what a size those wheel spacer?
Reply With Quote
  #4
Old 11-04-2010, 02:27 AM
changaroo changaroo is offline
Senior Member
Points: 6,386, Level: 23 Points: 6,386, Level: 23 Points: 6,386, Level: 23
Activity: 0% Activity: 0% Activity: 0%

Join Date: Mar 2008
Location: GA
Posts: 555
Rep Power: 41
changaroo is somewhat reliable
Re: DIY: Rebuild Brembo Calipers and Installation (No 56k!!!)

so im assuming you reused the ksports caliper bracket for the brembos? did they fit perfectly?

nvm it looks like you bolted the brembos straight up to the hubs... they fit w/o an adapter?
__________________

automatic 4 cyl on steelies

Last edited by changaroo; 11-04-2010 at 02:30 AM.
Reply With Quote
  #5
Old 11-04-2010, 08:47 AM
SykVSyx's Avatar
SykVSyx SykVSyx is offline
Senior Member
Points: 53,928, Level: 71 Points: 53,928, Level: 71 Points: 53,928, Level: 71
Activity: 10% Activity: 10% Activity: 10%

Join Date: Jan 2007
Location: Tee Dot Ohh
Posts: 13,893
Rep Power: 101
SykVSyx has their shit togetherSykVSyx has their shit togetherSykVSyx has their shit together
Re: DIY: Rebuild Brembo Calipers and Installation (No 56k!!!)

Hey Simon, sorry to wake you.

Very impressive DIY, and one of the most detailed ones from a Caliper swap/build.

Definately deserves a rep point!

We will talk more about a few things soon.
__________________
J30 + stock auto(past) > J35 + Oddy(present) > 10/21/14 - RIP......Aegean Blue Pearl(future) - ANY QUESTIONS?
Reply With Quote
  #6
Old 11-04-2010, 08:45 PM
Tek_Rice's Avatar
Tek_Rice Tek_Rice is offline
Senior Member
Points: 9,463, Level: 29 Points: 9,463, Level: 29 Points: 9,463, Level: 29
Activity: 0% Activity: 0% Activity: 0%

Join Date: Sep 2006
Location: Fairfax va
Posts: 1,219
Rep Power: 53
Tek_Rice is somewhat reliable
Re: DIY: Rebuild Brembo Calipers and Installation (No 56k!!!)

I was the Ksport BBK?
__________________
Function > Form "A show car may not be a race car, but a race car is always a show car." HELLA FUNCTIONAL
Reply With Quote
  #7
Old 11-04-2010, 10:51 PM
simon_y's Avatar
simon_y simon_y is offline
Senior Member
Points: 9,317, Level: 28 Points: 9,317, Level: 28 Points: 9,317, Level: 28
Activity: 0% Activity: 0% Activity: 0%

Join Date: Sep 2008
Location: Toronto, Ontario
Age: 28
Posts: 552
Rep Power: 52
simon_y is more helpful than most
Re: DIY: Rebuild Brembo Calipers and Installation (No 56k!!!)

Originally Posted by purpleaccord View Post
wow cool info dude, what you gonna do with the ksport caliper? anyway what a size those wheel spacer?
Those are 25mm Ichiba Spacers

Originally Posted by changaroo View Post
so im assuming you reused the ksports caliper bracket for the brembos? did they fit perfectly?

nvm it looks like you bolted the brembos straight up to the hubs... they fit w/o an adapter?
Yup, no bracket. Direct bolt on to our knuckle.

Originally Posted by Tek_Rice View Post
I was the Ksport BBK?
It was awesome, 8 Piston with 330mm (13 inch) 2 piece rotor. Braking is so much better with no brake fade on the track. But the whole package is pretty heavy. Yes you do save some weight because the Ksport Caliper is lighter than your OEM Casted one. But the weight you save from the Caliper is gone because the weight of the 13 inch rotor is unbelievable. The rotor is massive and huge even though it is 2 piece.

Originally Posted by SykVSyx View Post
Hey Simon, sorry to wake you.

Very impressive DIY, and one of the most detailed ones from a Caliper swap/build.

Definately deserves a rep point!

We will talk more about a few things soon.
No problem, lol. I woke up this morning wondering weather that conversation really happened or not or weather it was a dream cause I was still mostly asleep when you called. lol.

I'll give you a call sometime early next week when I have time.
__________________
Reply With Quote
  #8
Old 11-06-2010, 07:31 AM
Tek_Rice's Avatar
Tek_Rice Tek_Rice is offline
Senior Member
Points: 9,463, Level: 29 Points: 9,463, Level: 29 Points: 9,463, Level: 29
Activity: 0% Activity: 0% Activity: 0%

Join Date: Sep 2006
Location: Fairfax va
Posts: 1,219
Rep Power: 53
Tek_Rice is somewhat reliable
Re: DIY: Rebuild Brembo Calipers and Installation (No 56k!!!)

thanks for the rebuild thread. I've been trying to pick up a dc5 project mu kit for a while now. A while ago ppl were using the dc5 spoon calipers, but that was purely aesthetics vs performance.
__________________
Function > Form "A show car may not be a race car, but a race car is always a show car." HELLA FUNCTIONAL
Reply With Quote
  #9
Old 11-06-2010, 09:12 PM
akoutmos's Avatar
akoutmos akoutmos is offline
Senior Member
Points: 15,033, Level: 37 Points: 15,033, Level: 37 Points: 15,033, Level: 37
Activity: 0% Activity: 0% Activity: 0%

Join Date: Feb 2009
Location: Seattle
Posts: 919
Rep Power: 134
akoutmos has their shit togetherakoutmos has their shit togetherakoutmos has their shit togetherakoutmos has their shit togetherakoutmos has their shit together
Send a message via AIM to akoutmos
Re: DIY: Rebuild Brembo Calipers and Installation (No 56k!!!)

sweet write up. Kinda makes me wanna do it. How much did the whole project run you if you don't mind me asking. Also where did you get the calipers?
__________________


???whp/???wtq @ 15psi (butt dyno says 260): Turbo Build / DIY Catchcan / Custom Downpipe / DIY Battery Relocate / Suspension Revamp / G23 Build
Reply With Quote
  #10
Old 11-06-2010, 11:41 PM
Tek_Rice's Avatar
Tek_Rice Tek_Rice is offline
Senior Member
Points: 9,463, Level: 29 Points: 9,463, Level: 29 Points: 9,463, Level: 29
Activity: 0% Activity: 0% Activity: 0%

Join Date: Sep 2006
Location: Fairfax va
Posts: 1,219
Rep Power: 53
Tek_Rice is somewhat reliable
Re: DIY: Rebuild Brembo Calipers and Installation (No 56k!!!)

You can get a set of brembo calipers on ebay for about 500 or less.

Rebuild kits usually run about 50 for each caliper

Rotors are anywhere from 50-150 each depending on what kind you want

You should probably upgrade the SS lines too, they're probably 120 a set

Pads are about 150ish if you go EBC
__________________
Function > Form "A show car may not be a race car, but a race car is always a show car." HELLA FUNCTIONAL
Reply With Quote
Reply

Bookmarks

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


» Featured Ride
CHECK OUT THIS WEEK'S FEATURED RIDE!



Powered by vBadvanced CMPS v3.2.3
