DIY - Morimoto Mini H1 projectors Retrofit

So this is a DIY for the morimoto projectors retro fit purchased from www.theretrofitsource.com





Difficulty: 6.5/10

Time: 5+ hours

tools/ supplies:
belt sander(preferred) and or dremel
assortment of screw drivers
chisel
oven/heat gun
silicone

Step 1: Take off the bumper and remove the headlights from the car. then take them apart either using th oven method or a heat gun. and if you can't do that w/o pictures you shouldn't be attempting this retro fit.

oven method i use: preheat oven to 325. put a damp towel on the rack and bake for 5 minutes. while using gloves, lift up all the little tabs w/ a screw driver and then pry apart the headlight from the top using a flat head screw driver.

they'll look like this



Step 2: now remove the little light reflector in the reflector bucket using a Philips screw driver.
it'll be the small screw pictured here


and this is the piece that shall be removed


Step 3: now take your projector and remove the 3 little screw holding the bracket on the back and also remove the bracket


Step 4: take the projector and put the end if it into the low beam housing so that it's in the reflector bucket


I didn't hook up the high beam part of the projector so i tool the wire and stuck it in the hole left by the light reflector.

then you'll want to secure the projector using this piece and have it held on like so. use a needle nose plier to tighten the projector on and make sure it is straight and level



I suggest you put the 3 little screws and bracket back on and also(after checking to make sure they work) put the bulbs in.


Step 5: Next is to make the projector shroud fit into the reflector bucket. I used a belt sander to evenly fit it in. This is a step where you'll just need to keep touching it up until it fits properly into the bucket and sits far enough back to be able to close the headlight. You could also use a dremel for this part but it will make the job 5x more tedious.

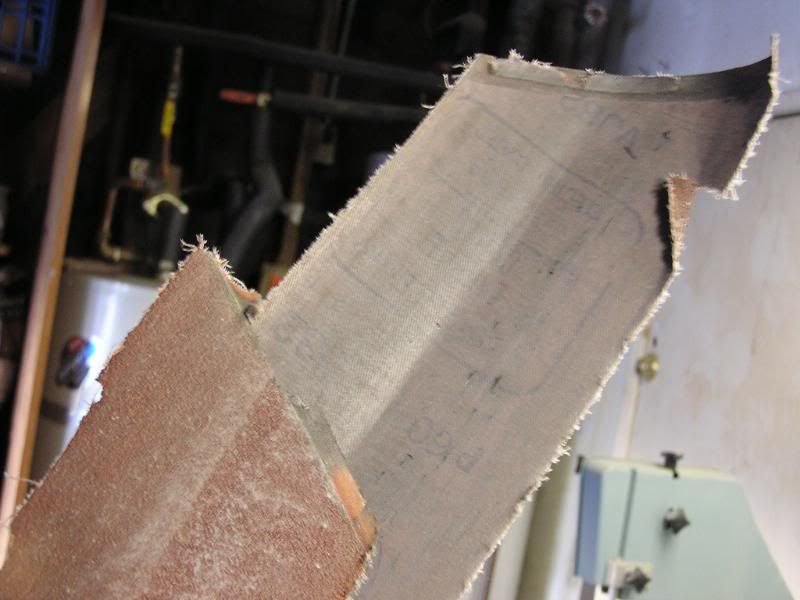

also, make sure your belt isn't 10years old so it doesn't snap on you. (always wear gloves and safety glasses too)

eventually you'll get it to fit well, and you can test it by putting on the front 1/2 to see if it fits.


A problem you may run into is that the black housing (part you paint when black housing a headlight) may bump up against the shroud. in order to fix this problem i used a chisel on the spot on the shroud the housing was bumping up against so that it would have a grove to fit into.


Another option is to trim the housing piece like presented here from another member:



Step 6: Now take the should out and clean everything off. for this i used an air compressor and a micro fiber towel. once it is all shiny put the shroud back on and reseal it. I used a heat gun to head up the rubber cement compound and after squeezing the headlight together, i used the silicone to make an extra ring of protection around the headlight.

now you're done.


Just put them on the car and if you need to re-adjust them, just do it as if it were regular bulbs in the housing.




DIY for the full function of Bi-xenon made by 1NonlyAccord
http://www.6thgenaccord.com/forums/s...ad.php?t=34744
__________________
HID Kit Club #087 | TWM#008:TLMF | Civic Fog Club #001
SoCal Ninja

Last edited by juicebox00; 05-19-2014 at 05:08 AM.
Reply With Quote
  #2
Old 07-30-2010, 04:35 PM
Johnson Johnson is offline
Senior Member
Points: 14,147, Level: 36 Points: 14,147, Level: 36 Points: 14,147, Level: 36
Activity: 0% Activity: 0% Activity: 0%

Join Date: Mar 2009
Location: SoCal
Posts: 1,578
Rep Power: 70
Johnson should be someone you can trustJohnson should be someone you can trust
Send a message via AIM to Johnson
Re: DIY - Morimoto Mini H1 projectors Retrofit

good ****. repped
__________________
Instagram @GabaJohnson
Ghetto. Ahss. Broke. Ahss. Racers.
youtube.com/GabaRacers
Reply With Quote
  #3
Old 07-30-2010, 04:44 PM
juicebox00's Avatar
juicebox00 juicebox00 is offline
Senior Member
Points: 31,741, Level: 54 Points: 31,741, Level: 54 Points: 31,741, Level: 54
Activity: 0% Activity: 0% Activity: 0%

Join Date: Aug 2008
Location: SoCal
Posts: 5,230
Rep Power: 98
juicebox00 has their shit togetherjuicebox00 has their shit togetherjuicebox00 has their shit together
Member Photo Albums
Send a message via AIM to juicebox00
Re: DIY - Morimoto Mini H1 projectors Retrofit

ty
__________________
HID Kit Club #087 | TWM#008:TLMF | Civic Fog Club #001
SoCal Ninja
Reply With Quote
  #4
Old 07-30-2010, 05:20 PM
Sketch o5's Avatar
Sketch o5 Sketch o5 is online now
purp og


Points: 122,111, Level: 100 Points: 122,111, Level: 100 Points: 122,111, Level: 100
Activity: 99% Activity: 99% Activity: 99%

Join Date: Sep 2005
Location: Hairnips, New Boobly
Posts: 22,370
Rep Power: 205
Sketch o5 is a name known to allSketch o5 is a name known to allSketch o5 is a name known to allSketch o5 is a name known to allSketch o5 is a name known to allSketch o5 is a name known to allSketch o5 is a name known to all
Member Photo Albums
Re: DIY - Morimoto Mini H1 projectors Retrofit

how do these look at night? any chance to get any pics?
__________________


1000RR

HID Kit Club #008 | DSLR Club #077 | G87P

FS: 98-00 OEM Sedan Tail Lights | shipping available

Reply With Quote
  #5
Old 07-30-2010, 07:06 PM
1NonlyAccord's Avatar
1NonlyAccord 1NonlyAccord is offline
Senior Member
Points: 17,583, Level: 40 Points: 17,583, Level: 40 Points: 17,583, Level: 40
Activity: 0% Activity: 0% Activity: 0%

Join Date: Aug 2008
Location: GA
Age: 28
Posts: 2,389
Rep Power: 98
1NonlyAccord has their shit together1NonlyAccord has their shit together1NonlyAccord has their shit together
Re: DIY - Morimoto Mini H1 projectors Retrofit

awsome..Much easier than TSX retro..ha Where did you purchase the projectors?
are those the minigun shrounds or w.e gun shrouds?
ya any better cut off pics of both on the car?
__________________
untuned turbo 217.01whp/238.46wtq @7psi
New setup-254.06whp/249.27wtq @10psi
RETUNED- 281.94whp/280.56wtq @11psi
Current tune-315whp/310wtq @14psi

Reply With Quote
  #6
Old 07-30-2010, 08:45 PM
juicebox00's Avatar
juicebox00 juicebox00 is offline
Senior Member
Points: 31,741, Level: 54 Points: 31,741, Level: 54 Points: 31,741, Level: 54
Activity: 0% Activity: 0% Activity: 0%

Join Date: Aug 2008
Location: SoCal
Posts: 5,230
Rep Power: 98
juicebox00 has their shit togetherjuicebox00 has their shit togetherjuicebox00 has their shit together
Member Photo Albums
Send a message via AIM to juicebox00
Re: DIY - Morimoto Mini H1 projectors Retrofit

Originally Posted by Sketch o5 View Post
how do these look at night? any chance to get any pics?
the cut off is okay, it's not on my car so i can get any pics atm but i'lll have some pics next week
Originally Posted by 1NonlyAccord View Post
awsome..Much easier than TSX retro..ha Where did you purchase the projectors?
are those the minigun shrounds or w.e gun shrouds?
ya any better cut off pics of both on the car?
idk where to get them, you'd have to pm jwong512 for info on where to buy and shroud info. and pics next week

Edit: purchased from www.theretrofitsource.com
__________________
HID Kit Club #087 | TWM#008:TLMF | Civic Fog Club #001
SoCal Ninja

Last edited by juicebox00; 12-21-2010 at 04:20 PM.
Reply With Quote
  #7
Old 07-30-2010, 08:48 PM
98acclude 98acclude is offline
Senior Member
Points: 12,797, Level: 34 Points: 12,797, Level: 34 Points: 12,797, Level: 34
Activity: 0% Activity: 0% Activity: 0%

Join Date: Jul 2008
Location: Joplin Missouri
Age: 30
Posts: 635
Rep Power: 41
98acclude is an unknown quantity at this point
Re: DIY - Morimoto Mini H1 projectors Retrofit

this is what I've been waiting for! thank you thank you!!! you helped with my fogs and now my future retro!! rep rep rep!!!

err wait a min... how do I rep ppl again?
__________________
infatuated withLIGHTSsince april 25,2010

I have an H22 swap hence the name acclude

Last edited by 98acclude; 07-30-2010 at 09:15 PM.
Reply With Quote
  #8
Old 07-30-2010, 09:48 PM
jwong512 jwong512 is offline
Senior Member
Points: 8,435, Level: 27 Points: 8,435, Level: 27 Points: 8,435, Level: 27
Activity: 0% Activity: 0% Activity: 0%

Join Date: Aug 2009
Location: Socal 626
Posts: 1,287
Rep Power: 36
jwong512 is an unknown quantity at this point
Send a message via AIM to jwong512
Re: DIY - Morimoto Mini H1 projectors Retrofit

Originally Posted by 1NonlyAccord View Post
awsome..Much easier than TSX retro..ha Where did you purchase the projectors?
are those the minigun shrounds or w.e gun shrouds?
ya any better cut off pics of both on the car?
I purchased them from www.theretrofitsource.com. I talked to Matt there and he hooked me up with a deal. Morimoto Projectors + 5000K Morimoto H1 Bulbs + Premium Apollo Shrouds + Free Shipping for $160. It's one hell of a deal as they usually go for $185 without shipping. At the moment, the headlights aren't aimed properly and we haven't had time to fix that so we should get some better cutoff pics next week . And thanks to Juicebox00 for all the help!!
__________________
Honda Accord 2001 EX-L
F23A4, SULEV
Taspro Hybrid Intake, DC Sports Ceramic Coated Header 4-2-1, Comptech Muffler w/custom 2.25in Catback Piping
Morimoto H1 5000K Retrofit + Raptor 35W Ballasts
H&R Race Springs, Koni Yellow Struts
Reply With Quote
  #9
Old 07-30-2010, 10:04 PM
jkr1809 jkr1809 is offline
Member
Points: 1,958, Level: 12 Points: 1,958, Level: 12 Points: 1,958, Level: 12
Activity: 0% Activity: 0% Activity: 0%

Join Date: Jan 2010
Location: Hawaii
Posts: 63
Rep Power: 0
jkr1809 is an unknown quantity at this point
Re: DIY - Morimoto Mini H1 projectors Retrofit

nice! good job! rep for yous
Reply With Quote
  #10
Old 07-30-2010, 11:43 PM
itzcharlie itzcharlie is offline
Senior Member
Points: 15,276, Level: 37 Points: 15,276, Level: 37 Points: 15,276, Level: 37
Activity: 0% Activity: 0% Activity: 0%

Join Date: Oct 2008
Location: Baton Rouge, LA
Posts: 1,540
Rep Power: 40
itzcharlie is an unknown quantity at this point
Send a message via AIM to itzcharlie
Re: DIY - Morimoto Mini H1 projectors Retrofit

great job on the retro!
