02 3" Lift

Discussion in 'Suspension, Brakes, Wheels, and Tires' started by Rahhstah, Jun 5, 2021.

  1. Rahhstah

    Rahhstah New Member

    Posts:
    4
    Likes Received:
    2
    Joined:
    Jun 5, 2021
    Location:
    Colorado
    02 lx with 5 lug swap, and 3 inch lift. Need to get some adjustable upper ball joints.
    I kept rear drums, just swapped in different rear hubs. Might do rear disc conversion later.

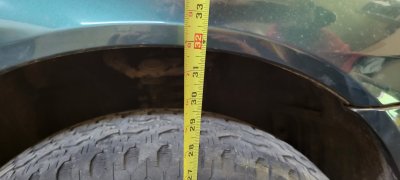

    Side view with Jeep wheels and 235x75x15s

    Front wheel

    Rear wheel

    Sketch o5 likes this.
  2. RedRyder

    RedRyder Save the manuals

    Posts:
    19,431
    Likes Received:
    97
    Joined:
    Sep 5, 2008
    Location:
    Fawking, OH
    Innnnteresting lol. Jeep Cherokee wheels? Looks like you're getting ready for some light offroading. :)

  3. Rahhstah

    Rahhstah New Member

    Posts:
    4
    Likes Received:
    2
    Joined:
    Jun 5, 2021
    Location:
    Colorado
    Yes, doing the Rocky Mountain Rambler 500...
    last year we modded up a rear ended 98 accord.

    I kinda like that this didn't need as much work, and maybe give someone else the bug

    Note, that i used the read hubs for V6 3.0L with Rear Disc Brakes from 1998-02 Honda Accord.. they work fine to swap in and retain the drum brakes.

    Last edited: Jun 10, 2021
  4. Adhmuz

    Adhmuz Member

    Posts:
    19
    Likes Received:
    1
    Joined:
    Aug 11, 2016
    Location:
    Montreal
    Hilarious! And awesome of course. You putting any skid plates on the bottom to protect the oil pan and what have you?

  5. Rahhstah

    Rahhstah New Member

    Posts:
    4
    Likes Received:
    2
    Joined:
    Jun 5, 2021
    Location:
    Colorado
    Yes, going to change out the front bumper since larger tires don't like it, and add in some under belly protection as well.

    Have plans, but will see how many get done in the next year. For this years RMR500, it'll be pretty tame.

  6. dpham671

    dpham671 Member

    Posts:
    22
    Likes Received:
    0
    Joined:
    Jan 18, 2020
    Location:
    Los Angeles, CA
    Hell yeah. That’s what I’m talkin bout.

  7. Rahhstah

    Rahhstah New Member

    Posts:
    4
    Likes Received:
    2
    Joined:
    Jun 5, 2021
    Location:
    Colorado
    I guess Ill be do for pics in a week or two...

    Biggest challenge so far is the rear rubbing/bottoming out. Rear strut is 2" lowre, and subframe also dropped... Working on adding a lower strut mount spacer - similar to what you might find for a Chevy Truck with a 2" lift.

    Also got a new front bumper that's for a jeep :) Haven't mounted that yet as it'll take some time to modify it to "fit".


    Adhmuz likes this.
