Hondata and the Temp Gauge 2001 Accord

bavarianblessed

Active Member
Joined
Oct 7, 2017
Posts
36
Reaction score
9
Location
Chattanooga
Did this ever get solved. Curious to know what the fix was.

ran into the same when transferring an h swap from 99 to 01. my fix was to run an aftermarket guage and sending unit.

Yep, see SergA'a post above. You'll need a 98 or 99 gauge cluster. Run a single wire from the single connector sending unit on the side of the head (under the distributor) to the C2 connector on the gauge cluster.


This sensor

3MAWIEhMIdn_nv8KVvM4XDs4PadUpu87yBH8uby-bqU6HT2mglZyeH4vfW0-m2zhhT5xFT0ihyNABdyPiMTbS4e8Q8EO_7X7kD4V1rtAMcQSItLGBHnkwSpqXCwohptfBts6UjgjGEhPrqK-rGE3Vq8KV2aSLlQ23s8zqX3H_z3fY8VmYQkzxmX68KtmqYEu2Oa4CJebVEFWIDhHQZRg_9Cwp3VJXW_ql8Z9JvNMnpROn6qXezgxnqUiZ0xiY4mRdai3iRiBPPwYpEWS-vExB3s8cE2E4aGwc-NDUo6aPX6t0zLJvEZF7IM7EjeKZrgl749Wj3Y0GHEpyLJlq3PU_weTYgdjj-xi8mUTigdIL8ckc_6-rtO2vfraoiuJuxPy_yMHQWho1kIGXIc9el7D7Q261jadKzrkMurjELEtREW9SUdtfXpWvjaABdyuIEZEqhK68SUuOJIrTM_wNnXH80U_ptNrT-8izcxmVHdDfhhPpHAm83VujnlQJL41ap3bfsi0cjITWz81_vONSudwYBoqsPaKJ0KOzQkEPWKYLkxNhrrWjSSduRgjhMCP36d5wpOAKGAPNEpGHSc47h4RgYA1uIBXsCWFN2mYQg_8toFwbeFsY8pN9Rfzc4lsr4MSgeMZC_QgLw7Z86JUgbck1FyNRl-XMckE=w702-h937-no



Connects to this wire - C2 (Yellow/Grn Stripe)

DROsNKbrnaSi933kXiCW7B7-bgIyrAdmB0tupyOKLz3aMkOCMBwwG7zGAVYhJFxoce9WwAfhyGnw8UR4jnNv-Ixw48EZRNUZp_pZFHjAXg1Rn4r8_6U4WxSnk7fsIvrfYLdNXzqPVEsC4YaNiHJzcKKp6ou-C_QVqq5PxV89BLdpGeyJfWFab-Va-SwiCOJGRO7I7BcfkwlaUYARvdieUB6cEOCWGaqsO9tG0AwRIH-ILqKmz84QWFVpPsEmiPKdCyb7wvjgE_PatRda01Z45NjfwNrApLt07nPe-yThOM96dNZ_e8Pl7McuJRAtI4TLQs487mDjttLUCv-0QHPLkypok9vy1xwy0j5pTGL7K5SA5s2qnygKH1Wrd8rYFBw6Y8hmJ3-btYc7y345WjyPw1UPoNH_TTwpuEPy1jkLcZulPn_-_sqTAydo_-J3kMZVAt-xQ3W5Dik1lEPxwShwcR7RnH_i2BYAvIK1Kx9ku2uYKvXcPcRLPkgBDSWkwXBuH5YQsX2_OntznQjI9oRpz7sLBL9yR_K99XXERrQX4_dQs6m6Vuym1Xl3LTZzuxNoWlF7n7t6eNEYBZI17isJSUkasF8ccitmLXIFN5-JMCP1ayV9_jx4wIgYlNMmTfkhVguoEmVKxoPCrC_q_gOCUPXb48mSoDAs=w703-h937-no


bavarianblessed

Active Member
Joined
Oct 7, 2017
Posts
36
Reaction score
9
Location
Chattanooga
Wow I got replies. With solutions. Thank you.

I need a 99 cluster?

No, I never solved this.
lol it doesn't happen often on forums anymore.
Yep, need a 99 or 98 cluster and run a wire from the thermo sensor directly to the cluster. You can add the thermo sensor if your head doesn't have it, I made a post on how I wired mine up for my H23A swap here


Mark2001Accord

Well-Known Member
Joined
Apr 10, 2019
Posts
57
Reaction score
11
Location
Chicagoland
Will changing the clusters effect the anti theft stuff? Does the immobilizer or key functions get disturbed?

This is great, I 'm gonna get this one finally.

Part ordered off ebay. Local U pull it, turned up empty nothing that specific.

Last edited:

CG5_Accord_MT

Member
Joined
Sep 2, 2019
Posts
8
Reaction score
0
Location
Zimmerman, MN
No changing clusters will not do anything with the immobilizer but what I can suggest is that when you do the cluster just take the whole motor, needles and faces and swap them to your cluster and that will keep your original mileage. I have done this with the 01/02 coupe gauges (grey faces & red needles) in my 98 sedan all I had to do is repin in the coolant needle to the correct spot


Mark2001Accord

Well-Known Member
Joined
Apr 10, 2019
Posts
57
Reaction score
11
Location
Chicagoland
Looks like it might be necessary, they sent me a broken one. How do I swap the Coolant gauge only? That part might still work. If I can bring it onto my cluster, and that will do what I need in the end, it could work out.


bavarianblessed

Active Member
Joined
Oct 7, 2017
Posts
36
Reaction score
9
Location
Chattanooga
Looks like it might be necessary, they sent me a broken one. How do I swap the Coolant gauge only? That part might still work. If I can bring it onto my cluster, and that will do what I need in the end, it could work out.

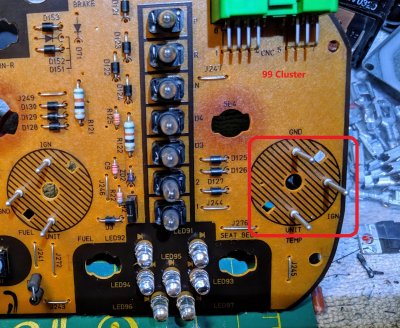

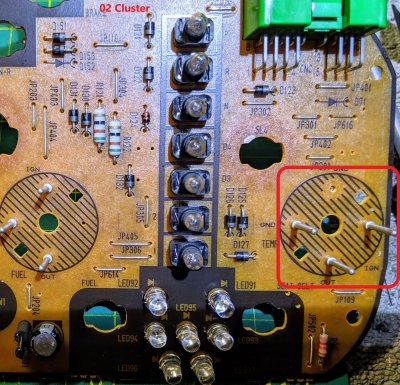

The 00-02 coolant gauge pins are in a different position from the 98-99, they won't work in each other.

02_cluster.jpg 99_cluster.jpg


DShaw

Member
Joined
Apr 21, 2017
Posts
5
Reaction score
0
Location
Greensboro, NC
hey guys I know this is an old post but I'm hoping I can get an answer here. I'm aware that the temp gauge doesn't work with hondata. does this also mean that the ecu (hondata) doesn't know the temp?


Mark2001Accord

Well-Known Member
Joined
Apr 10, 2019
Posts
57
Reaction score
11
Location
Chicagoland
[QUOTE="DShaw, post: 1127391'm aware that the temp gauge doesn't work with hondata. does this also mean that the ecu (hondata) doesn't know the temp?[/QUOTE]

Sure it does. Hondata knows the CTS value. I wired a underdash button to start recording datastream. If powerfade gets suspicion I can check it in the trip review.

If knew cel phones and computers, I could load an app that shows Temp ...probably.

I have a cheap gauge, under the dash, piggybacked off the CTS. I know the temp..

I want it on the dash. PERFECT! like all my projects. I bought clusters, coolant gauges...

'Redline Gauges' was the best fix I could find. Replacing the workings, with custom parts to make the DASH temp function, calibrated in a range.

I was quoted $495.00, and let it go.

Last edited:
