MT fluid leak

Discussion in 'Engine & Transmission Mods' started by whitegourd, Mar 22, 2021.

  1. whitegourd

    whitegourd Well-Known Member

    Posts:
    157
    Likes Received:
    0
    Joined:
    Apr 27, 2009
    Location:
    SoCal - Santa Clarita Valley
    Hi guys, I've had a slow MT fluid leak dripping off the bottom of the transmission for some time now. I finally traced it to the top of the transmission where the shift arm cover is located.

    I'm looking to replace the oil seals but wanted to get a heads up on how complicated it is to change it out on my own. I haven't found any resources online on how to go about replacing it. Due to the wetness in this area, I believed the leak I have is coming out of one or two places in the area. (#14 and #15 of the diagram below).

    https://www.hondapartsnow.com/parts...-ka_5mt/transmission_manual/mt_shift_arm.html

    Does anyone have any tips on replacing these seals? Is there a sequence on what needs to be removed to get to that seal?

    Any help is much appreciated.

  2. INK DEMON

    INK DEMON Well-Known Member

    Posts:
    79
    Likes Received:
    10
    Joined:
    Nov 29, 2008
    Location:
    SAN DIEGO

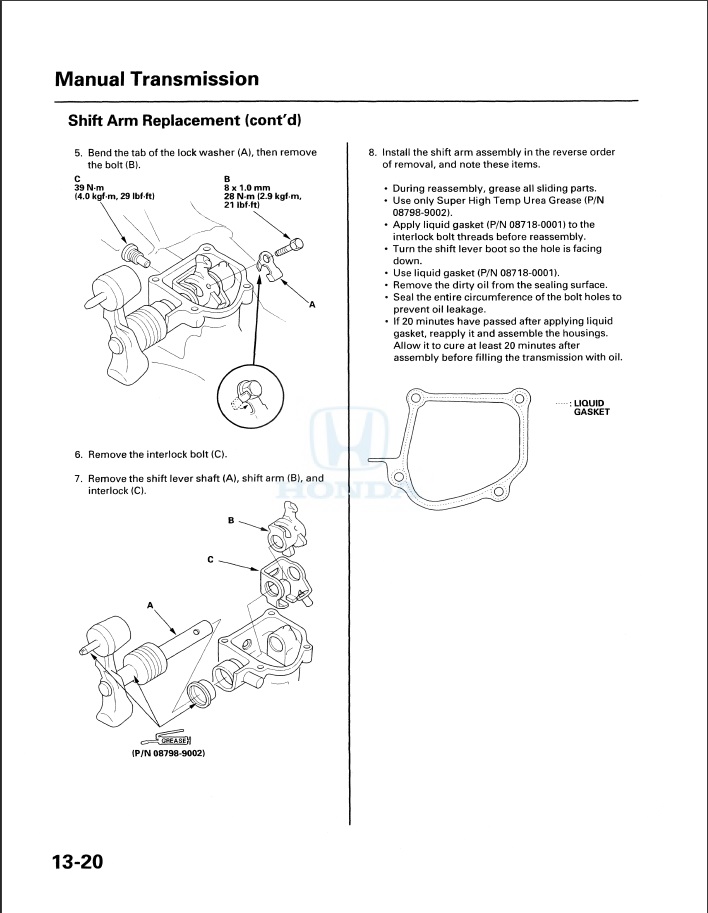

    This is what you are looking for:
    [​IMG]
    [​IMG]
    [​IMG]

  3. whitegourd

    whitegourd Well-Known Member

    Posts:
    157
    Likes Received:
    0
    Joined:
    Apr 27, 2009
    Location:
    SoCal - Santa Clarita Valley
    This is perfect! Thank so much!
