Multiplex Control unit. No Light on Instrument Cluster Gauges

V6DZ

Member
Joined
Apr 26, 2024
Posts
8
Reaction score
1
Location
Central Washington
2000 Honda accord v6

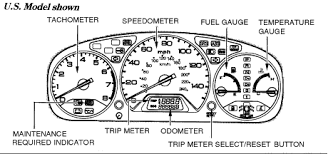

Instrument cluster has never worked. Well The lights for the gauges have never worked. but the Lights for the warning lights, blinkers and all those work just fine.


After doing research im finding multiplex control unit being the culprit. I have tore the cluster out, checked and changed all bulbs. Outside of the vehicle i can jump the cluster gauges lights and they work. Ive checked the #9 fuse. Were all good there.

There is a recall on these multiplexes i guess. See below link.

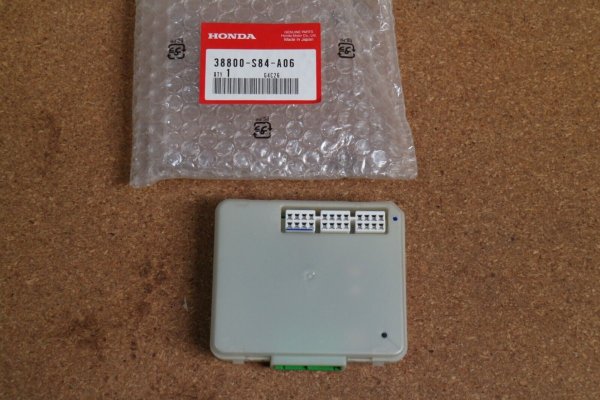

"CORRECTIVE ACTIONReplace the driver’s side multiplex control unit.PARTS INFORMATIONMultiplex Control Unit (4-door models):p/N 38800-S84-A06, H/C 6254676Multiplex Control Unit (2-door models):p/N 38800-S82-A03, H/C 6218911"

Now we Broke boys. My question is, is there a way to open this multiplex and fix it? or do we need to just get a new one? Thanks!

Ebay link to multiplex


Attachments

  • Cluster5.jpg
    50.9 KB · Views: 2

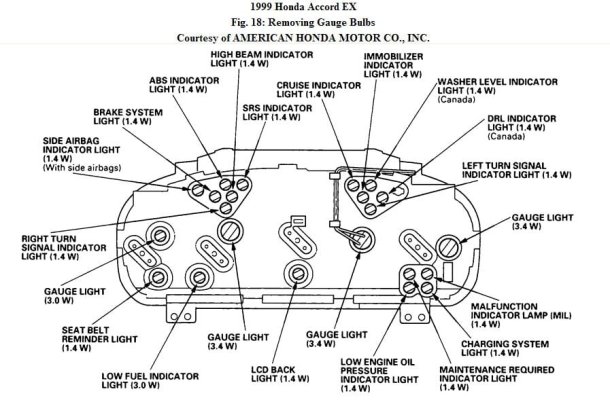

  • 2009-07-05_151901_GaugeBulbs99AccordEX01a.jpg
    81.3 KB · Views: 2
  • images.png
    12.9 KB · Views: 2
  • s-l1600.jpg
    175.6 KB · Views: 2

RedRyder

Save the manuals
Joined
Sep 5, 2008
Posts
19,530
Reaction score
132
Location
Fawking, OH
I don't recall anyone disassembling their multiplexor to fix it, but it has been a while. Still, I am thinking it requires replacement.


bakerboy

Member
Joined
Sep 15, 2024
Posts
7
Reaction score
0
Location
liberty ky
If you have an aftermarket radio or if you can tell someone else did then check your license plate light fuse on the passenger side fusebox
