    Well isn't gonna happend any time soon because the way you treat her she's definitely gonna live way longer than you.. :rofl:

    Sil2DrV6 likes this.
  2. Sil2DrV6

    Sil2DrV6 Well-Known Member

    Posts:
    1,767
    Likes Received:
    44
    Joined:
    Oct 15, 2012
    Location:
    USA
    Haha if that's the case, my son will probably get to drive that. He might be ashamed of drying an old POS that consumes gasoline, and plays compact discs and cassette tapes lol.

    cg4ever likes this.
  3. cg4ever

    cg4ever Well-Known Member

    Posts:
    172
    Likes Received:
    19
    Joined:
    Sep 5, 2018
    Location:
    Europe
    i personally think this car has a unique and timeless design, no way someone should be bothered or ashamed to ride a such beauty :driver:

  4. Sil2DrV6

    Sil2DrV6 Well-Known Member

    Posts:
    1,767
    Likes Received:
    44
    Joined:
    Oct 15, 2012
    Location:
    USA
    Updated the list, after getting a huge maintenance job done, which was supposed to be completed by June lol. Took forever to collect all parts for this on my own, since my shop could only charge me with Acura dealer retail price for the parts. The delay pulled me behind until late September, but it was worth being patient during the shipments, and it's all running smooth with all fresh studs n bolts! Ended up replacing the fuel injectors, instead of cleaning, since a couple of them were cracked. Got the oil pressure switch also replaced, and there seems to be no more leaky situations happening from the P.S. pump & the oil pump areas by now. The motor idles sooo smoooth now... But, just b/c of that, the car vibrates quite noticeably by the old motor mounts now lol. Onto get those new ones next. Happy Thanks Giving Day To Everyone!!

    Engine Bay / Performance:
    * '08 - '12 Honda Accord V6 AT J35 I.M. Top Cover
    * '09 - '14 Acura TL SH-AWD J37 I.M.
    * Bosch Icon Wiper Blades
    * Denso Ignition Coils
    * Injen Technology Cold Air Intake
    * P2R Power Rev Racing J32 T.B. to J37 I.M. Adaptor

    Suspension / Footwork:

    * Pirelli Cinturato P7 Tires
    * SPC Right Front OE Replacing Upper Ball Joint

    Exterior / Cosmetics:
    * Stock

    Interior:
    * JDM Air Fresheners
    * Meguiar's Air Re-Fresher
    * Weathertech All-Weather Universal Floor mats
    * Window Films

    Lighting:
    * Stock

    Electronics / I.C.E. / Misc.:
    * Stock

    Vehicle History Service Log:
    -- 09/14/2002 5,110 mi General Service
    -- 01/30/2003 9,931 mi Recommended mi service
    -- 05/14/2003 14,963 mi General Service
    -- 08/14/2003 19,156 mi General Service
    -- 12/02/2003 23,560 mi General Service
    -- 12/29/2003 24,686 mi Wheels & Tires checked
    -- 03/08/2004 27,374 mi General Service
    -- 10/20/2006 63,964 mi Braking Service
    -- 06/14/2007 72,773 mi Braking Service
    -- 11/21/2007 79,037 mi Tires checked
    -- 12/01/2008 99,070 mi General Service
    -- 04/09/2009 99,617 mi Maintenance inspection completed
    -- 04/09/2009 99,617 mi Exterior lights checked
    -- 03/04/2010 108,279 mi Tires balanced rotated & aligned
    -- 03/04/2010 108,279 mi Front brake rotors resurfaced
    -- 12/08/2010 113,690 mi Maintenance inspection completed
    -- 12/08/2010 113,690 mi Brakes checked
    -- 12/08/2010 113,690 mi Tires checked
    -- 12/08/2010 113,690 mi Electrical system checked
    -- 02/07/2011 114,303 mi General Service
    -- 11/29/2011 118,426 mi General Service
    -- 03/15/2012 ???,??? mi General Service
    -- 06/16/2012 120,849 mi General Service
    -- 05/24/2013 125,872 mi General Service
    -- 06/07/2013 ???,??? mi General Service
    -- 03/07/2014 128,641 mi General Service
    -- 01/21/2015 ???,??? mi Brake system bled
    -- 06/23/2015 133,467 mi General Service
    -- 06/23/2015 133,467 mi Brake fluid changed
    -- 07/09/2015 133,534 mi General Service
    -- 12/12/2015 135,520 mi General Service
    -- 12/12/2015 135,520 mi Cooling, A/C and heating system serviced
    -- 12/12/2015 135,520 mi Coolant flushed/changed
    -- 09/19/2018 143,359 mi Recommended mi Service
    -- 09/19/2018 143,359 mi Drivability/performance checked
    -- 03/07/2019 Takata Driver Airbag Safety Recall Notice
    -- 08/26/2020 143,481 mi General Service
    -- 12/09/2020 144,476 mi Throttle Body Cleaning
    -- 12/10/2020 144,476 mi Valve Clearance Adjustments
    -- 01/18/2021 144,506mi Full Vehicle Inspection Service
    -- 01/18/2021 144,506 mi Valve Clearance Re-Adjusted
    -- 01/18/2021 144,506 mi Oil Pan Resealed
    -- 02/11/2021 144,627 mi Clutch & Brake fluid changed
    -- 02/11/2021 144,627 mi Parking brake adjusted
    -- 02/17/2021 144,628 mi Takata Driver Airbag Safety Recall Replacement


    Parts Replacement Log:
    -- 12/01/2008 99,070 mi Exterior lights checked Light bulb(s) replaced
    -- 02/01/2010 107,884 mi Engine/powertrain computer/module replaced
    -- 03/04/2010 108,279 mi Water pump & Timing belt replaced
    -- 06/16/2012 120,849 mi Battery & light bulbs replaced
    -- 01/21/2015 ???,??? mi Rear brake calipers replaced
    -- 06/23/2015 133,467 mi Front and Rear Brake Pads replaced
    -- 06/23/2015 133,467 mi Front Calipers replaced
    -- 06/23/2015 133,467 mi Rear rotors replaced
    -- 12/12/2015 135,520 mi Heater control valve replaced
    -- 07/27/2020 143,460 mi Fuel Pump Relay replaced
    -- 08/26/2020 143,481 mi Spark Plugs & Wheel studs replaced
    -- 08/18/2020 143,483 mi Ignition Coils replaced
    -- 08/18/2020 143,483 mi EGR Valve replaced
    -- 12/09/2020 144,476 mi Intake Manifold replaced
    -- 12/09/2020 144,476 mi Air Intake replaced
    -- 12/10/2020 144,476 mi Rear wheel bearings and hubs replaced
    -- 12/18/2020 144,476 mi Rear Brake rotors and pads replaced
    -- 12/18/2020 144,476 mi Parking Brake hard ware kit replaced
    -- 01/18/2021 144,506 mi Front Valve Cover replaced
    -- 01/18/2021 144,506 mi Valve Cover Gaskets Replaced
    -- 01/18/2021 144,506 mi Lower Plenum Gasket Replaced
    -- 01/18/2021 144,506 mi Spark Plug Tube Seals Replaced
    -- 01/18/2021 144,506 mi Valve Cover Seal Washers Replaced
    -- 01/18/2021 144,506 mi Intake Manifold Cover Bracket Replaced
    -- 03/04/2021 144,944 mi Tires Replaced (Used)
    -- 03/04/2021 144,944 mi Front Upper Ball Joint Replaced
    -- 09/27/2021 148,479 mi Power Steering Pump Replaced
    -- 09/27/2021 148,479 mi Spool Valve Filter Housing Replaced
    -- 09/27/2021 148,479 mi Fuel Injectors Replaced
    -- 09/27/2021 148,479 mi Water Pump Replaced
    -- 09/27/2021 148,479 mi Idler Bearing Replaced
    -- 09/27/2021 148,479 mi Tensioner Bearing Replaced
    -- 09/27/2021 148,479 mi Timing Belt Replaced
    -- 09/27/2021 148,479 mi P.S. Pump Belt Replaced
    -- 09/27/2021 148,479 mi A/C belt Replaced
    -- 09/27/2021 148,479 mi Camshaft Seal Replaced
    -- 09/27/2021 148,479 mi Crankshaft Seals Replaced
    -- 09/27/2021 148,479 mi Water Temperature Sensor Replaced
    -- 09/27/2021 148,479 mi Oil Pressure Switch Replaced



    Remarks: Updated:11/25/2021
    1. Left Windshield washer ----- Clogged.
    2. Clutch ----- Slipping.
    3. Front Brake Rotors ----- Warped.
    4. L. Headlight HID ----- Shot.
    5. Struts ----- Weak.
    6. Passenger's Fr. seat ----- Stuck.
    7. P.S. Rack ----- Leaking.
    8. Front floor under seat ----- Crushed lol.

    Engine / drivetrain maintenance:

    – Timing belt ----- Done! @108K mi
    – Water pump ----- Done! @108K mi
    – Air intake ----- Done! @144K mi
    – EGR Valve & Gasket ----- Done! @143K mi
    – Spark plugs ----- Done! @143K mi
    – Ignition coils ----- Done! @143K mi
    – Throttle body gaskets ----- Done! @144K mi
    – Throttle Body Cleaning ----- Done! @144K mi
    – Throttle position sensor gasket ----- Done! @144K mi
    – Front Cylinder Head Covers ----- Done! @144K mi
    – Cylinder Head Cover Gasket Sets ----- Done! @144K mi
    – Valve Cover Gasket ----- Done! @144K mi
    – Valve Clearance Adjustment ----- Done! @144K mi
    – Oil Pan Gasket ----- Done! @144K mi
    – Power Steering Pump ----- Done! @ 148K mi
    – Spool Valve Filter Housing ----- Done! @ 148K mi
    – Cam seals ----- Done! @ 148K mi
    – Front crank seal ----- Done! @ 148K mi
    – Drive belt ----- Done! @ 148K mi
    – Drive belt tensioner ----- Done! @ 148K mi
    – Tensioner pulley ----- Done! @ 148K mi
    – Idler pulley ----- Done! @ 148K mi
    – Injectors ----- Done! @ 148K mi
    – Water temperature sensor ----- Done! @ 148K mi
    – Timing belt ----- Done! @ 148K mi
    – Water pump ----- Done! @148K mi

    – Exhausts Manifold
    – Exhausts manifold gaskets
    – Head gaskets
    – Fuel Rail
    – Fuel Pump
    – Oil pump (if needed)

    Replacement parts at the motor swap:
    – Main Seal (Front & Rear)
    – Axle Seals
    – Starter
    – Clutch
    – Flywheel
    – Motor and transmission mounts
    – Radiator hoses (Lower)
    – Heater Core Hoses ----- Is it a must ?????

    Accord parts keeper at the motor swap:
    – Thermostat ----- (From the Accord)
    – Radiator hoses Upper ----- (From the Accord)
    – Rear Cylinder Head Covers ----- (From the Accord)
    – Denso Odyssey Alternator ----- (From the Accord)
    – Big 3 zero gage ground wires ----- (From the Accord)
    – Idle Air Control Valve & gasket ----- (From the Accord)

    CL parts extraction:
    – Motor + mounts
    – Engine Wire Harness
    – Transmission + mounts
    – ECU
    – Axles with Half Shaft
    – Shift Cables and Shift Box
    – Brake pedal
    – Clutch pedal
    – Clutch pedal mounting box
    – Master cylinder
    – Slave cylinder
    – Fuse box



    Last edited: Nov 27, 2021
  5. Sil2DrV6

    Sil2DrV6 Well-Known Member

    Posts:
    1,767
    Likes Received:
    44
    Joined:
    Oct 15, 2012
    Location:
    USA

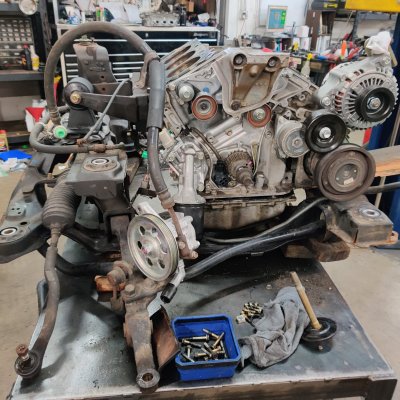

    Well, this motor restoration project is taking forever, but I'm still here! Big new updates to come up really soon. There's going to be one last major parts replacements game happening, before this motor gets into the Accord's engine bay, later in the future. Actually, this replacement stuff can / should be done all together at the motor swap, but the Accord is really being difficult to be treated as a daily beater anymore, and I found this CL to be very convenient when she becomes more drivable. Hence, in order to make this CL as a reliable car once again, there is going to be a few big replacements coming up to further restore her condition to a decent level. Here's my list of sections:

    • Clutch & flywheel

    • Motor mounts + brackets

    • Transmission mounts (components only)

    • Exhausts manifold gaskets & head gaskets

    • Fuel rails

    • Cylinder head bolts

    • Camshaft thrust covers

    • Thermostat switch o-ring

    • Cylinder block's rear main oil seal

    • Starter motor

    • Alternator

    • Exhausts manifold headers + A-pipe

    • HID Ballast + bulb (driver's side only)

    • Motor oil + oil filter

    • Manual transmission fluid

    • A/C recharging

    These sections are still focused on the motor swap, minus the A/C work & an HID ballast. All parts are new, except for the ballast. It took me a while for me to collect all of these parts from Acura on my own, but with my buddy's help, I'm happy that all of the parts are going to be installed with new OEM nuts, bolts, studs, and brackets from the factory. However, some of those OEM parts and components were discontinued as a whole assembly, due to the age and rarity of the model. With that said, some of the existing parts on the vehicle (i.e. some motor mount brackets & the transmission mounts w/ components) are going to be reused. Fingers cx'ed.. Btw, the factory starter motor I got for this CL is from '04 - '06 base TL. It's because the OEM 6MT CL starters were sadly discontinued long ago, but this remanufactured one will work w/o any issues. It has been cross referenced with the Acura dealership's parts department guys to verify the compatibility. Other Accord owners with swapped motors are also running these starters with no problem for years. Also, there are four sections listed above are aftermarket brands with **one exception** in terms of fitment.

    AFTERMARKET PARTS LIST:
    • Clutch + flywheel = EXEDY / LUK OE replacement

    • Motor mounts = INNOVATIVE OE replacement

    • Alternator = DENSO OE replacement

    • Exhausts mani headers & A-pipe = **DC SPORTS** (HHS5528 stainless steel for AT tranny CL)

    **(Since the piping is shaped for the auto CL, it needs to be hammered and bent. I was also given a choice of getting the AT motor mount instead, in order to run this header piece without applying any modifications on it. But I also heard and believe that perhaps it might be worth customizing this header, than exchanging the mount with one of my nearly purchased motor mounts. Not only this HHS5528 DC headers becoming hard to come by, but I will also have to go through more of those ordering processes to exchange and repurchase the additional parts components for the AT mount in these frequently backordered freight moving chaotic societies. Once it's bent, it will look similar to the Comptech's headers, I suppose.)**

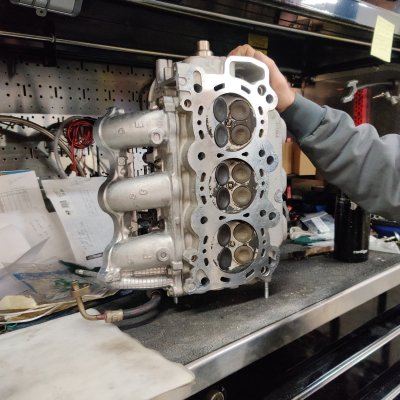

    The cylinder heads will be cleaned, machined, and pressure-tested as well. I thought about throwing my Accord's old stock suspension parts into this CL, since her struts are getting weak, but this could wait.
    This is so exciting! Once it's done, I get to drive a fresh 6-6, yet as a beater for a while!:driving:



    Engine Bay / Performance:
    * '08 - '12 Honda Accord V6 AT J35 I.M. Top Cover
    * '09 - '14 Acura TL SH-AWD J37 I.M.
    * Bosch Icon Wiper Blades
    * Denso Ignition Coils
    * Injen Technology Cold Air Intake
    * P2R Power Rev Racing J32 T.B. to J37 I.M. Adaptor

    Suspension / Footwork:

    * Pirelli Cinturato P7 Tires
    * SPC Right Front OE Replacing Upper Ball Joint

    Exterior / Cosmetics:
    * Stock

    Interior:
    * JDM Air Fresheners
    * Meguiar's Air Re-Fresher
    * Weathertech All-Weather Universal Floor mats
    * Window Films

    Lighting:
    * Stock

    Electronics / I.C.E. / Misc.:
    * Stock

    Vehicle History Service Log:
    -- 09/14/2002 5,110 mi General Service
    -- 01/30/2003 9,931 mi Recommended mi service
    -- 05/14/2003 14,963 mi General Service
    -- 08/14/2003 19,156 mi General Service
    -- 12/02/2003 23,560 mi General Service
    -- 12/29/2003 24,686 mi Wheels & Tires checked
    -- 03/08/2004 27,374 mi General Service
    -- 10/20/2006 63,964 mi Braking Service
    -- 06/14/2007 72,773 mi Braking Service
    -- 11/21/2007 79,037 mi Tires checked
    -- 12/01/2008 99,070 mi General Service
    -- 04/09/2009 99,617 mi Maintenance inspection completed
    -- 04/09/2009 99,617 mi Exterior lights checked
    -- 03/04/2010 108,279 mi Tires balanced rotated & aligned
    -- 03/04/2010 108,279 mi Front brake rotors resurfaced
    -- 12/08/2010 113,690 mi Maintenance inspection completed
    -- 12/08/2010 113,690 mi Brakes checked
    -- 12/08/2010 113,690 mi Tires checked
    -- 12/08/2010 113,690 mi Electrical system checked
    -- 02/07/2011 114,303 mi General Service
    -- 11/29/2011 118,426 mi General Service
    -- 03/15/2012 ???,??? mi General Service
    -- 06/16/2012 120,849 mi General Service
    -- 05/24/2013 125,872 mi General Service
    -- 06/07/2013 ???,??? mi General Service
    -- 03/07/2014 128,641 mi General Service
    -- 01/21/2015 ???,??? mi Brake system bled
    -- 06/23/2015 133,467 mi General Service
    -- 06/23/2015 133,467 mi Brake fluid changed
    -- 07/09/2015 133,534 mi General Service
    -- 12/12/2015 135,520 mi General Service
    -- 12/12/2015 135,520 mi Cooling, A/C and heating system serviced
    -- 12/12/2015 135,520 mi Coolant flushed/changed
    -- 09/19/2018 143,359 mi Recommended mi Service
    -- 09/19/2018 143,359 mi Drivability/performance checked
    -- 08/26/2020 143,481 mi General Service
    -- 12/09/2020 144,476 mi Throttle Body Cleaning
    -- 12/10/2020 144,476 mi Valve Clearance Adjustments
    -- 01/18/2021 144,506 mi Full Vehicle Inspection Service
    -- 01/18/2021 144,506 mi Valve Clearance Re-Adjusted
    -- 01/18/2021 144,506 mi Oil Pan Resealed
    -- 02/11/2021 144,627 mi Clutch & Brake fluid changed
    -- 02/11/2021 144,627 mi Parking brake adjusted
    -- 02/17/2021 144,628 mi Takata Driver Airbag Safety Recall Replacement


    Parts Replacement Log:
    -- 12/01/2008 99,070 mi Exterior lights checked Light bulb(s) replaced
    -- 02/01/2010 107,884 mi Engine/powertrain computer/module replaced
    -- 03/04/2010 108,279 mi Water pump & Timing belt replaced
    -- 06/16/2012 120,849 mi Battery & light bulbs replaced
    -- 01/21/2015 ???,??? mi Rear brake calipers replaced
    -- 06/23/2015 133,467 mi Front and Rear Brake Pads replaced
    -- 06/23/2015 133,467 mi Front Calipers replaced
    -- 06/23/2015 133,467 mi Rear rotors replaced
    -- 12/12/2015 135,520 mi Heater control valve replaced
    -- 07/27/2020 143,460 mi Fuel Pump Relay replaced
    -- 08/26/2020 143,481 mi Spark Plugs & Wheel studs replaced
    -- 08/18/2020 143,483 mi Ignition Coils replaced
    -- 08/18/2020 143,483 mi EGR Valve replaced
    -- 12/09/2020 144,476 mi Intake Manifold replaced
    -- 12/09/2020 144,476 mi Air Intake replaced
    -- 12/09/2020 144,476 mi Throttle body gaskets
    -- 12/09/2020 144,476 mi Throttle position sensor gasket
    -- 12/10/2020 144,476 mi Rear wheel bearings and hubs replaced
    -- 12/18/2020 144,476 mi Rear Brake rotors and pads replaced
    -- 12/18/2020 144,476 mi Parking Brake hardware kit replaced
    -- 01/18/2021 144,506 mi Front Valve Cover replaced
    -- 01/18/2021 144,506 mi Valve Cover Gaskets Replaced
    -- 01/18/2021 144,506 mi Lower Plenum Gasket Replaced
    -- 01/18/2021 144,506 mi Oil Pan Gasket
    -- 01/18/2021 144,506 mi Spark Plug Tube Seals Replaced
    -- 01/18/2021 144,506 mi Valve Cover Seal Washers Replaced
    -- 01/18/2021 144,506 mi Intake Manifold Cover Bracket Replaced
    -- 03/04/2021 144,944 mi Tires Replaced (Used)
    -- 03/04/2021 144,944 mi Front Upper Ball Joint Replaced
    -- 09/27/2021 148,479 mi Spool Valve Filter Housing Replaced
    -- 09/27/2021 148,479 mi Fuel Injectors Replaced
    -- 09/27/2021 148,479 mi Water Pump Replaced
    -- 09/27/2021 148,479 mi Drive belt Replaced
    -- 09/27/2021 148,479 mi Drive belt tensioner Replaced
    -- 09/27/2021 148,479 mi Idler Bearing Replaced
    -- 09/27/2021 148,479 mi Tensioner Bearing Replaced
    -- 09/27/2021 148,479 mi Timing Belt Replaced
    -- 09/27/2021 148,479 mi Power Steering Pump Replaced
    -- 09/27/2021 148,479 mi P.S. Pump Belt Replaced
    -- 09/27/2021 148,479 mi A/C belt Replaced
    -- 09/27/2021 148,479 mi Camshaft Seal Replaced
    -- 09/27/2021 148,479 mi Crankshaft Seals Replaced
    -- 09/27/2021 148,479 mi Water Temperature Sensor Replaced
    -- 09/27/2021 148,479 mi Oil Pressure Switch Replaced



    Vehicle Condition Remarks: Updated:09/24/2022
    1. Left Windshield washer ----- Clogged.
    2. Clutch ----- Slipping ----- Coming soon!
    3. Front Brake Rotors ----- Warped.
    4. L. Headlight HID ----- Shot ----- Coming soon!
    5. Struts ----- Weak.
    6. Passenger's Fr. seat ----- Stuck.
    7. P.S. Rack ----- Leaking.
    8. Front floor under seat ----- Crushed lol.

    Parts replacements / maintenance before the swap:

    – Timing belt ----- Done! @108K mi
    – Water pump ----- Done! @108K mi
    – Air intake ----- Done! @144K mi
    – EGR Valve & Gasket ----- Done! @143K mi
    – Spark plugs ----- Done! @143K mi
    – Ignition coils ----- Done! @143K mi
    – Throttle body gaskets ----- Done! @144K mi
    – Throttle Body Cleaning ----- Done! @144K mi
    – Throttle position sensor gasket ----- Done! @144K mi
    – Front Cylinder Head Cover ----- Done! @144K mi
    – Cylinder Head Cover Gasket Sets ----- Done! @144K mi
    – Valve Cover Gasket ----- Done! @144K mi
    – Valve Clearance Adjustment ----- Done! @144K mi
    – Oil Pan Gasket ----- Done! @144K mi
    – Power Steering Pump ----- Done! @ 148K mi
    – Spool Valve Filter Housing ----- Done! @ 148K mi
    – Cam seals ----- Done! @ 148K mi
    – Front crank seal ----- Done! @ 148K mi
    – Drive belt ----- Done! @ 148K mi
    – Drive belt tensioner ----- Done! @ 148K mi
    – Tensioner pulley ----- Done! @ 148K mi
    – Idler pulley ----- Done! @ 148K mi
    – Fuel Injectors ----- Done! @ 148K mi
    – Water temperature sensor ----- Done! @ 148K mi
    – Timing belt ----- Done! @ 148K mi
    – Water pump ----- Done! @148K mi


    – Clutch ----- Coming soon!
    – Flywheel ----- Coming soon!
    – Motor mounts & Brackets ----- Coming soon!
    – Transmission mount Components ----- Coming soon!
    – Cylinder head bolts ----- Coming soon!
    – Camshaft thrust covers ----- Coming soon!
    – Thermostat sensor switch o-ring ----- Coming soon!
    – Head gaskets ----- Coming soon!
    – Fuel Rails ----- Coming soon!
    – Injector base gaskets ----- Coming soon!
    – Starter ----- Coming soon!
    – Alternator ----- Coming soon!
    – Rear main seal ----- Coming soon!
    – Exhausts Manifold & A-pipe ----- Coming soon!
    – Exhausts manifold gaskets ----- Coming soon!

    Replacement parts at the motor swap:
    – Front Main Seal
    – Axle Seals
    – Lower Radiator hoses
    – Oil pump (if needed)
    – Fuel Pump (if needed)
    – Heater Core Hoses ----- Is it a must ?????

    Accord parts to keep at the motor swap:
    – Thermostat
    – Upper Radiator
    – Rear Cylinder Head Covers
    – Denso Odyssey Alternator
    – Big 3 zero gage ground wires
    – Idle Air Control Valve & gasket

    CL parts to extract at the motor swap:
    – Motor + mounts
    – Transmission + mounts
    – Engine Wire Harness
    – ECU
    – Axles with Half Shaft
    – Shift Cables and Shift Box
    – Brake pedal
    – Clutch pedal
    – Clutch pedal mounting box
    – Master cylinder
    – Slave cylinder
    – Fuse box
    – Keys

    Thanks for checking! :favorites37:

    Last edited: Sep 24, 2022
    cg4ever and RedRyder like this.
  6. Sil2DrV6

    Sil2DrV6 Well-Known Member

    Posts:
    1,767
    Likes Received:
    44
    Joined:
    Oct 15, 2012
    Location:
    USA
    Sent out the car to the shop to complete the stuff I documented on my previous post, and the motor is now gutted out. This is going to be the final parts replacement game, before the swap. My original plans for the areas of the replacement have been pretty much everything from the air intake to the headers, excluding internals. Kind of like a 150K - 200K mi parts replacement maintenance sort of speak. I thought I could finish it off, where the headers pipe meets the catalytic converter, but the car didn't let me complete it as I planned. It's because the piping and the flange from the headers to the converter have been severely corroded. It would affect the proper sealing of my new headers, if I were to keep this existing old factory cat now. Honestly, I didn't feel like getting near $3K oem new converter, so I went out with a Magnaflow oem grade fitment piece instead. Man, IDK what sort of expensive metal stuff, like platinum or something, they put into these oem cat converters, but this Magnaflow's was only a quarter of the price of the factory converters. Also, the cat-back sections of the flanges were also corroded af, so I needed a new set of exhausts, too. Wasn't really expecting to renew an exhausts system at this point either. The factory sets were discontinued long ago, so I looked for an oem reps by Borla or Bosal, but there were n/a. Since I still prefer having a quiet setup, my choice was settled with a set of Tanabe Medallions. There were also a few leaky spots shown by the oil pan, oil pump front main seal, rear main seal block plate, and the p.s. rack. The leak from the rack has been minor, and I wanted to opt it out, but it became very active, so it needs a replacement as well. Got all of these parts ordered, and I received them mostly. But the oil pan is now backordered. :dancingpoop:

    When it's finished, I should be able to regain a fully restored motor function and the gear shifting, though the suspension components are corroded af. I better start think about renewing the front tires, before having too much fun with it lol.


    Updated the mod / maintenance list below, due to the aforementioned situations explained additionally.


    Engine Bay / Performance:
    * '08 - '12 Honda Accord V6 AT J35 I.M. Top Cover
    * '09 - '14 Acura TL SH-AWD J37 I.M.
    * Bosch Icon Wiper Blades
    * DC Sports Stainless Steel Performance Headers (Custom Bent) ----- Coming soon!
    * Denso Ignition Coils
    * Injen Technology Cold Air Intake
    * Magnaflow OEM Grade Direct-Fit Catalytic Converter ----- Coming soon!
    * P2R Power Rev Racing J32 T.B. to J37 I.M. Adaptor
    * Tanabe Revel Medallion Touring S Cat Back Dual Exhausts System ----- Coming soon!

    Suspension / Footwork:

    * Pirelli Cinturato P7 Tires
    * SPC Right Front OE Replacing Upper Ball Joint

    Exterior / Cosmetics:
    * Stock

    Interior:
    * JDM Air Fresheners
    * Meguiar's Air Re-Fresher
    * Weathertech All-Weather Universal Floor mats
    * Window Films

    Lighting:
    * Stock

    Electronics / I.C.E. / Misc.:
    * Stock

    Vehicle History Service Log:
    -- 09/14/2002 5,110 mi General Service
    -- 01/30/2003 9,931 mi Recommended mi service
    -- 05/14/2003 14,963 mi General Service
    -- 08/14/2003 19,156 mi General Service
    -- 12/02/2003 23,560 mi General Service
    -- 12/29/2003 24,686 mi Wheels & Tires checked
    -- 03/08/2004 27,374 mi General Service
    -- 10/20/2006 63,964 mi Braking Service
    -- 06/14/2007 72,773 mi Braking Service
    -- 11/21/2007 79,037 mi Tires checked
    -- 12/01/2008 99,070 mi General Service
    -- 04/09/2009 99,617 mi Maintenance inspection completed
    -- 04/09/2009 99,617 mi Exterior lights checked
    -- 03/04/2010 108,279 mi Tires balanced rotated & aligned
    -- 03/04/2010 108,279 mi Front brake rotors resurfaced
    -- 12/08/2010 113,690 mi Maintenance inspection completed
    -- 12/08/2010 113,690 mi Brakes checked
    -- 12/08/2010 113,690 mi Tires checked
    -- 12/08/2010 113,690 mi Electrical system checked
    -- 02/07/2011 114,303 mi General Service
    -- 11/29/2011 118,426 mi General Service
    -- 03/15/2012 ???,??? mi General Service
    -- 06/16/2012 120,849 mi General Service
    -- 05/24/2013 125,872 mi General Service
    -- 06/07/2013 ???,??? mi General Service
    -- 03/07/2014 128,641 mi General Service
    -- 01/21/2015 ???,??? mi Brake system bled
    -- 06/23/2015 133,467 mi General Service
    -- 06/23/2015 133,467 mi Brake fluid changed
    -- 07/09/2015 133,534 mi General Service
    -- 12/12/2015 135,520 mi General Service
    -- 12/12/2015 135,520 mi Cooling, A/C and heating system serviced
    -- 12/12/2015 135,520 mi Coolant flushed/changed
    -- 09/19/2018 143,359 mi Recommended mi Service
    -- 09/19/2018 143,359 mi Drivability/performance checked
    -- 08/26/2020 143,481 mi General Service
    -- 12/09/2020 144,476 mi Throttle Body Cleaning
    -- 12/10/2020 144,476 mi Valve Clearance Adjustments
    -- 01/18/2021 144,506 mi Full Vehicle Inspection Service
    -- 01/18/2021 144,506 mi Valve Clearance Re-Adjusted
    -- 01/18/2021 144,506 mi Oil Pan Resealed
    -- 02/11/2021 144,627 mi Clutch & Brake fluid changed
    -- 02/11/2021 144,627 mi Parking brake adjusted
    -- 02/17/2021 144,628 mi Takata Driver Airbag Safety Recall Replacement


    Parts Replacement Log:
    -- 12/01/2008 99,070 mi Exterior lights checked Light bulb(s) replaced
    -- 02/01/2010 107,884 mi Engine/powertrain computer/module replaced
    -- 03/04/2010 108,279 mi Water pump & Timing belt replaced
    -- 06/16/2012 120,849 mi Battery & light bulbs replaced
    -- 01/21/2015 ???,??? mi Rear brake calipers replaced
    -- 06/23/2015 133,467 mi Front and Rear Brake Pads replaced
    -- 06/23/2015 133,467 mi Front Calipers replaced
    -- 06/23/2015 133,467 mi Rear rotors replaced
    -- 12/12/2015 135,520 mi Heater control valve replaced
    -- 07/27/2020 143,460 mi Fuel Pump Relay replaced
    -- 08/26/2020 143,481 mi Spark Plugs & Wheel studs replaced
    -- 08/18/2020 143,483 mi Ignition Coils replaced
    -- 08/18/2020 143,483 mi EGR Valve replaced
    -- 12/09/2020 144,476 mi Intake Manifold replaced
    -- 12/09/2020 144,476 mi Air Intake replaced
    -- 12/09/2020 144,476 mi Throttle body gaskets
    -- 12/09/2020 144,476 mi Throttle position sensor gasket
    -- 12/10/2020 144,476 mi Rear wheel bearings and hubs replaced
    -- 12/18/2020 144,476 mi Rear Brake rotors and pads replaced
    -- 12/18/2020 144,476 mi Parking Brake hardware kit replaced
    -- 01/18/2021 144,506 mi Front Valve Cover replaced
    -- 01/18/2021 144,506 mi Valve Cover Gaskets Replaced
    -- 01/18/2021 144,506 mi Lower Plenum Gasket Replaced
    -- 01/18/2021 144,506 mi Oil Pan Gasket
    -- 01/18/2021 144,506 mi Spark Plug Tube Seals Replaced
    -- 01/18/2021 144,506 mi Valve Cover Seal Washers Replaced
    -- 01/18/2021 144,506 mi Intake Manifold Cover Bracket Replaced
    -- 03/04/2021 144,944 mi Tires Replaced (Used)
    -- 03/04/2021 144,944 mi Front Upper Ball Joint Replaced
    -- 09/27/2021 148,479 mi Spool Valve Filter Housing Replaced
    -- 09/27/2021 148,479 mi Fuel Injectors Replaced
    -- 09/27/2021 148,479 mi Water Pump Replaced
    -- 09/27/2021 148,479 mi Drive belt Replaced
    -- 09/27/2021 148,479 mi Drive belt tensioner Replaced
    -- 09/27/2021 148,479 mi Idler Bearing Replaced
    -- 09/27/2021 148,479 mi Tensioner Bearing Replaced
    -- 09/27/2021 148,479 mi Timing Belt Replaced
    -- 09/27/2021 148,479 mi Power Steering Pump Replaced
    -- 09/27/2021 148,479 mi P.S. Pump Belt Replaced
    -- 09/27/2021 148,479 mi A/C belt Replaced
    -- 09/27/2021 148,479 mi Camshaft Seal Replaced
    -- 09/27/2021 148,479 mi Crankshaft Seals Replaced
    -- 09/27/2021 148,479 mi Water Temperature Sensor Replaced
    -- 09/27/2021 148,479 mi Oil Pressure Switch Replaced



    Vehicle Condition Remarks: Updated:09/24/2022
    1. Left Windshield washer ----- Clogged.
    2. Clutch ----- Slipping ----- Coming soon!
    3. Front Brake Rotors ----- Warped.
    4. L. Headlight HID ----- Shot ----- Coming soon!
    5. Struts ----- Weak.
    6. Passenger's Fr. seat ----- Stuck.
    7. P.S. Rack ----- Leaking ----- Coming soon!
    8. Front floor under seat ----- Crushed lol.

    Parts replacements / maintenance before the swap:

    – Timing belt ----- Done! @108K mi
    – Water pump ----- Done! @108K mi
    – Air intake ----- Done! @144K mi
    – EGR Valve & Gasket ----- Done! @143K mi
    – Spark plugs ----- Done! @143K mi
    – Ignition coils ----- Done! @143K mi
    – Throttle body gaskets ----- Done! @144K mi
    – Throttle Body Cleaning ----- Done! @144K mi
    – Throttle position sensor gasket ----- Done! @144K mi
    – Front Cylinder Head Cover ----- Done! @144K mi
    – Cylinder Head Cover Gasket Sets ----- Done! @144K mi
    – Valve Cover Gasket ----- Done! @144K mi
    – Valve Clearance Adjustment ----- Done! @144K mi
    – Oil Pan Gasket ----- Done! @144K mi
    – Power Steering Pump ----- Done! @ 148K mi
    – Spool Valve Filter Housing ----- Done! @ 148K mi
    – Cam seals ----- Done! @ 148K mi
    – Front crank seal ----- Done! @ 148K mi
    – Drive belt ----- Done! @ 148K mi
    – Drive belt tensioner ----- Done! @ 148K mi
    – Tensioner pulley ----- Done! @ 148K mi
    – Idler pulley ----- Done! @ 148K mi
    – Fuel Injectors ----- Done! @ 148K mi
    – Water temperature sensor ----- Done! @ 148K mi
    – Timing belt ----- Done! @ 148K mi
    – Water pump ----- Done! @148K mi


    – Clutch ----- Coming soon!
    – Flywheel ----- Coming soon!
    – Motor mounts & Brackets ----- Coming soon!
    – Transmission mount Components ----- Coming soon!
    – Cylinder head bolts ----- Coming soon!
    – Camshaft thrust covers ----- Coming soon!
    – Thermostat sensor switch o-ring ----- Coming soon!
    – Head gaskets ----- Coming soon!
    – Fuel Rails ----- Coming soon!
    – Injector base gaskets ----- Coming soon!
    – Starter ----- Coming soon!
    – Alternator ----- Coming soon!
    – Rear main seal ----- Coming soon!
    – Exhausts Manifold & A-pipe ----- Coming soon!
    – Exhausts manifold gaskets ----- Coming soon!
    – Oil Pan & Hondabond sealing ----- Coming soon!
    – Oil Pump front main oil seal ----- Coming soon!
    – Cylinder block rear main oil seal & plate ----- Coming soon!
    – Catalytic converter ----- Coming soon!
    – Exhausts system piping & mufflers + hangers ----- Coming soon!
    – Power steering rack & outer tie rod ends ----- Coming soon!

    Replacement parts at the motor swap:
    – Axle Seals
    – Lower Radiator hoses
    – Oil pump (Hopefully not!)
    – Fuel Pump (if needed)
    – Heater Core Hoses ----- Is it a must ?????

    Accord parts to keep at the motor swap:
    – Thermostat
    – Upper Radiator Hose
    – Rear Cylinder Head Covers
    – Denso Odyssey Alternator
    – Big 3 zero gage ground wires
    – Idle Air Control Valve & gasket
    – Engine Mounting Bracket

    CL parts to extract at the motor swap:
    – Motor + mounts
    – Transmission + mounts
    – Engine Wire Harness
    – ECU
    – Axles with Half Shaft
    – Shift Cables and Shift Box
    – Brake pedal
    – Clutch pedal
    – Clutch pedal mounting box
    – Master cylinder
    – Slave cylinder
    – Fuse box
    – Keys

    Thanks for checking! :dogpile:

    Last edited: Oct 20, 2022
  7. Sil2DrV6

    Sil2DrV6 Well-Known Member

    Posts:
    1,767
    Likes Received:
    44
    Joined:
    Oct 15, 2012
    Location:
    USA
    Got some progress, though the oil pan is still backordered. But it's got the ETA finally, Nov. the 15th! The clutch and the wheel are replaced. The cylinder heads are back from the machine shop, and those are in a good shape. Got the mounts bolted on, plus the alternator and headers. The headers still need some "adjustments" to clear the rear mount. The new cylinder bock plate has arrived with the oil seal, and the oil pump seal as well. Once the oil pan arrives, there will be more progress shown, such as P.S. rack, cat converter, exhausts system, and voila! :driving:

    Edited the mod / maintenance list below and uploaded a couple of photos. I will try to upload more in a few days!


    Engine Bay / Performance:
    * '08 - '12 Honda Accord V6 AT J35 I.M. Top Cover
    * '09 - '14 Acura TL SH-AWD J37 I.M.
    * Bosch Icon Wiper Blades
    * DC Sports Stainless Steel Performance Headers (Custom Bent) ----- Coming soon!
    * Denso Ignition Coils
    * Injen Technology Cold Air Intake
    * Magnaflow OEM Grade Direct-Fit Catalytic Converter ----- Coming soon!
    * P2R Power Rev Racing J32 T.B. to J37 I.M. Adaptor
    * Tanabe Revel Medallion Touring S Cat Back Dual Exhausts System ----- Coming soon!

    Suspension / Footwork:

    * Pirelli Cinturato P7 Tires
    * SPC Right Front OE Replacing Upper Ball Joint

    Exterior / Cosmetics:
    * Stock

    Interior:
    * JDM Air Fresheners
    * Meguiar's Air Re-Fresher
    * Weathertech All-Weather Universal Floor mats
    * Window Films

    Lighting:
    * Stock

    Electronics / I.C.E. / Misc.:
    * Stock

    Vehicle History Service Log:
    -- 09/14/2002 5,110 mi General Service
    -- 01/30/2003 9,931 mi Recommended mi service
    -- 05/14/2003 14,963 mi General Service
    -- 08/14/2003 19,156 mi General Service
    -- 12/02/2003 23,560 mi General Service
    -- 12/29/2003 24,686 mi Wheels & Tires checked
    -- 03/08/2004 27,374 mi General Service
    -- 10/20/2006 63,964 mi Braking Service
    -- 06/14/2007 72,773 mi Braking Service
    -- 11/21/2007 79,037 mi Tires checked
    -- 12/01/2008 99,070 mi General Service
    -- 04/09/2009 99,617 mi Maintenance inspection completed
    -- 04/09/2009 99,617 mi Exterior lights checked
    -- 03/04/2010 108,279 mi Tires balanced rotated & aligned
    -- 03/04/2010 108,279 mi Front brake rotors resurfaced
    -- 12/08/2010 113,690 mi Maintenance inspection completed
    -- 12/08/2010 113,690 mi Brakes checked
    -- 12/08/2010 113,690 mi Tires checked
    -- 12/08/2010 113,690 mi Electrical system checked
    -- 02/07/2011 114,303 mi General Service
    -- 11/29/2011 118,426 mi General Service
    -- 03/15/2012 ???,??? mi General Service
    -- 06/16/2012 120,849 mi General Service
    -- 05/24/2013 125,872 mi General Service
    -- 06/07/2013 ???,??? mi General Service
    -- 03/07/2014 128,641 mi General Service
    -- 01/21/2015 ???,??? mi Brake system bled
    -- 06/23/2015 133,467 mi General Service
    -- 06/23/2015 133,467 mi Brake fluid changed
    -- 07/09/2015 133,534 mi General Service
    -- 12/12/2015 135,520 mi General Service
    -- 12/12/2015 135,520 mi Cooling, A/C and heating system serviced
    -- 12/12/2015 135,520 mi Coolant flushed/changed
    -- 09/19/2018 143,359 mi Recommended mi Service
    -- 09/19/2018 143,359 mi Drivability/performance checked
    -- 08/26/2020 143,481 mi General Service
    -- 12/09/2020 144,476 mi Throttle Body Cleaning
    -- 12/10/2020 144,476 mi Valve Clearance Adjustments
    -- 01/18/2021 144,506 mi Full Vehicle Inspection Service
    -- 01/18/2021 144,506 mi Valve Clearance Re-Adjusted
    -- 01/18/2021 144,506 mi Oil Pan Resealed
    -- 02/11/2021 144,627 mi Clutch & Brake fluid changed
    -- 02/11/2021 144,627 mi Parking brake adjusted
    -- 02/17/2021 144,628 mi Takata Driver Airbag Safety Recall Replacement


    Parts Replacement Log:
    -- 12/01/2008 99,070 mi Exterior lights checked Light bulb(s) replaced
    -- 02/01/2010 107,884 mi Engine/powertrain computer/module replaced
    -- 03/04/2010 108,279 mi Water pump & Timing belt replaced
    -- 06/16/2012 120,849 mi Battery & light bulbs replaced
    -- 01/21/2015 ???,??? mi Rear brake calipers replaced
    -- 06/23/2015 133,467 mi Front and Rear Brake Pads replaced
    -- 06/23/2015 133,467 mi Front Calipers replaced
    -- 06/23/2015 133,467 mi Rear rotors replaced
    -- 12/12/2015 135,520 mi Heater control valve replaced
    -- 07/27/2020 143,460 mi Fuel Pump Relay replaced
    -- 08/26/2020 143,481 mi EGR Valve replaced
    -- 08/18/2020 143,483 mi Ignition Coils replaced
    -- 08/18/2020 143,483 mi Spark Plugs & Wheel studs replaced
    -- 12/09/2020 144,476 mi Air Intake replaced
    -- 12/09/2020 144,476 mi Intake Manifold replaced
    -- 12/09/2020 144,476 mi Throttle body gaskets
    -- 12/09/2020 144,476 mi Throttle position sensor gasket
    -- 12/10/2020 144,476 mi Rear Brake rotors and pads replaced
    -- 12/18/2020 144,476 mi Rear wheel bearings and hubs replaced
    -- 12/18/2020 144,476 mi Parking Brake hardware kit replaced
    -- 01/18/2021 144,506 mi Front Valve Cover replaced
    -- 01/18/2021 144,506 mi Intake Manifold Cover Bracket Replaced
    -- 01/18/2021 144,506 mi Lower Plenum Gasket Replaced
    -- 01/18/2021 144,506 mi Oil Pan Gasket
    -- 01/18/2021 144,506 mi Spark Plug Tube Seals Replaced
    -- 01/18/2021 144,506 mi Valve Cover Gaskets Replaced
    -- 01/18/2021 144,506 mi Valve Cover Seal Washers Replaced
    -- 03/04/2021 144,944 mi Front Upper Ball Joint Replaced
    -- 03/04/2021 144,944 mi Tires Replaced (Used)
    -- 09/27/2021 148,479 mi A/C belt Replaced
    -- 09/27/2021 148,479 mi Camshaft Seal Replaced
    -- 09/27/2021 148,479 mi Crankshaft Seals Replaced
    -- 09/27/2021 148,479 mi Drive belt Replaced
    -- 09/27/2021 148,479 mi Drive belt tensioner Replaced
    -- 09/27/2021 148,479 mi Fuel Injectors Replaced
    -- 09/27/2021 148,479 mi Idler Bearing Replaced
    -- 09/27/2021 148,479 mi Oil Pressure Switch Replaced
    -- 09/27/2021 148,479 mi Power Steering Pump Replaced
    -- 09/27/2021 148,479 mi Power Steering Pump Belt Replaced
    -- 09/27/2021 148,479 mi Spool Valve Filter Housing Replaced
    -- 09/27/2021 148,479 mi Tensioner Bearing Replaced
    -- 09/27/2021 148,479 mi Timing Belt Replaced
    -- 09/27/2021 148,479 mi Water Pump Replaced
    -- 09/27/2021 148,479 mi Water Temperature Sensor Replaced



    Vehicle Condition Remarks: Updated:09/24/2022
    1. Left Windshield washer ----- Clogged.
    2. Clutch ----- Slipping ----- Coming soon!
    3. Front Brake Rotors ----- Warped.
    4. L. Headlight HID ----- Shot ----- Coming soon!
    5. Struts ----- Weak.
    6. Passenger's Fr. seat ----- Stuck.
    7. P.S. Rack ----- Leaking ----- Coming soon!
    8. Front floor under seat ----- Crushed lol.

    Parts replacements / maintenance before the swap:

    – Timing belt ----- Done! @108K mi
    – Water pump ----- Done! @108K mi
    – Air intake ----- Done! @144K mi
    – EGR Valve & Gasket ----- Done! @143K mi
    – Spark plugs ----- Done! @143K mi
    – Ignition coils ----- Done! @143K mi
    – Throttle body gaskets ----- Done! @144K mi
    – Throttle Body Cleaning ----- Done! @144K mi
    – Throttle position sensor gasket ----- Done! @144K mi
    – Front Cylinder Head Cover ----- Done! @144K mi
    – Cylinder Head Cover Gasket Sets ----- Done! @144K mi
    – Valve Cover Gasket ----- Done! @144K mi
    – Valve Clearance Adjustment ----- Done! @144K mi
    – Oil Pan Gasket ----- Done! @144K mi
    – Power Steering Pump ----- Done! @ 148K mi
    – Spool Valve Filter Housing ----- Done! @ 148K mi
    – Cam seals ----- Done! @ 148K mi
    – Front crank seal ----- Done! @ 148K mi
    – Drive belt ----- Done! @ 148K mi
    – Drive belt tensioner ----- Done! @ 148K mi
    – Tensioner pulley ----- Done! @ 148K mi
    – Idler pulley ----- Done! @ 148K mi
    – Fuel Injectors ----- Done! @ 148K mi
    – Water temperature sensor ----- Done! @ 148K mi
    – Timing belt ----- Done! @ 148K mi
    – Water pump ----- Done! @148K mi


    – Clutch ----- Coming soon!
    – Flywheel ----- Coming soon!
    – Motor mounts & Brackets ----- Coming soon!
    – Transmission mount Components ----- Coming soon!
    – Cylinder head bolts ----- Coming soon!
    – Camshaft thrust covers ----- Coming soon!
    – Thermostat sensor switch o-ring ----- Coming soon!
    – Head gaskets ----- Coming soon!
    – Fuel Rails ----- Coming soon!
    – Injector base gaskets ----- Coming soon!
    – Starter ----- Coming soon!
    – Alternator ----- Coming soon!
    – Rear main seal ----- Coming soon!
    – Exhausts Manifold & A-pipe ----- Coming soon!
    – Exhausts manifold gaskets ----- Coming soon!
    – Oil Pan & Hondabond sealing ----- Coming soon!
    – Oil Pump front main oil seal ----- Coming soon!
    – Cylinder block rear main oil seal & plate ----- Coming soon!
    – Catalytic converter ----- Coming soon!
    – Exhausts system piping & mufflers + hangers ----- Coming soon!
    – Power steering rack & outer tie rod ends ----- Coming soon!

    Replacement parts at the motor swap:
    – Axle Seals
    – Lower Radiator hoses
    – Oil pump (Hopefully not!)
    – Fuel Pump (if needed)
    – Heater Core Hoses ----- Is it a must ?????

    Accord parts to keep at the motor swap:
    – Thermostat
    – Upper Radiator Hose
    – Rear Cylinder Head Covers
    – Denso Odyssey Alternator
    – Big 3 zero gage ground wires
    – Idle Air Control Valve & gasket
    – Engine Mounting Bracket

    CL parts to extract at the motor swap:
    – Motor + mounts
    – Transmission + mounts
    – Engine Wire Harness
    – ECU
    – Axles with Half Shaft
    – Shift Cables and Shift Box
    – Brake pedal
    – Clutch pedal
    – Clutch pedal mounting box
    – Master cylinder
    – Slave cylinder
    – Fuse box
    – Keys

    Thanks for checking! :dogpile:

    IMG_20221102_155128[2231].jpg IMG_20221102_155145[2230].jpg

    RedRyder and cg4ever like this.
  8. RedRyder

    RedRyder Save the manuals

    Posts:
    19,487
    Likes Received:
    112
    Joined:
    Sep 5, 2008
    Location:
    Fawking, OH
    It's...beautiful.

  9. Sil2DrV6

    Sil2DrV6 Well-Known Member

    Posts:
    1,767
    Likes Received:
    44
    Joined:
    Oct 15, 2012
    Location:
    USA
    ^Thanks!

    More photos. The oil pan is here, and this completes my parts supplying game. We'll see how it goes.



    The compressor will work till the swap, as well as the P.S. line.



    Clean for 148K right?


    Cleaned, adjusted, and new fuel rails installed

    Thanks for checking!:chewie:

    Eclipse99fwb likes this.
  10. ThatDesiKid

    ThatDesiKid Well-Known Member

    Age:
    26
    Posts:
    145
    Likes Received:
    6
    Joined:
    May 31, 2015
    Location:
    Rochester Hills, Michigan
    Glad to see you're progressing with the project! Ever since I painted the Accord I dont want to drive it anymore lololol even though it's supposed to be my daily. Gonna push my beater CL thru the winter and pull the motor in the spring. Hoping to save money for parts to throw at it once the motor is out and needs to be refreshed.

    Are you putting the refreshed motor back into the CL or swapping it into the Accord? Love seeing the updates when I pop back into the site!


Share This Page
