HKS Type 1 turbo timer

[Honda Importz01]

any one have a how to for a 01 4cyl sedan?



[Honda Importz01]

bump...



[talontsiawd]

Never done one on an accord but the directions are usually pretty clear.



[angelplus]

Never done one on an accord but the directions are usually pretty clear.

Yeah, but really theres only about.. 5 or us who are even turboed on this site, and I think that maybe 2 ofr them dont even post that much... Good luck with this, I heard that its actually pretty easy



[Totalimmortal]

Did it come with instructions?? If you can tell me what wirs you need to tap, I can tell you where to find them.



[Totalimmortal]

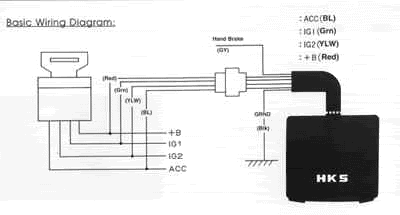

BAM! It took me three minutes to find this wiring diagram.
B+(12V) is a solid white wire at your ignition harness.
Ignition is a black/yellow wire at the ignition hanress.
Accessory 1 is a solid yellow wire at the ignition harness.
Accessory 2 is a white/black wire at the ignition harness.
Parking Brake is at the parking brake, you'll see it.

Start with the first accessory wire when you're hooking it up, and then go to Accessory 2 if that doesn't work. Have fun!!



[Honda Importz01]

sweet thanks. i havent got it yet i expect it to be here this week.
