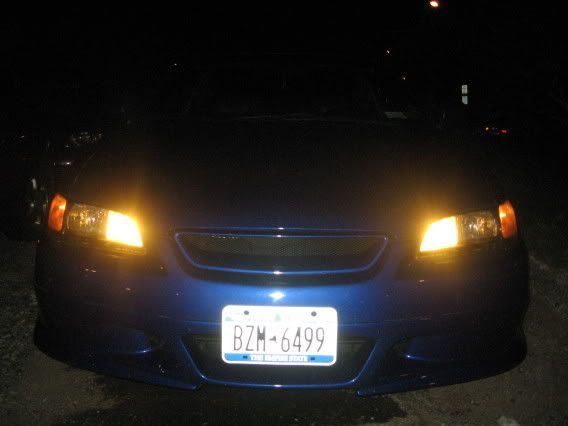

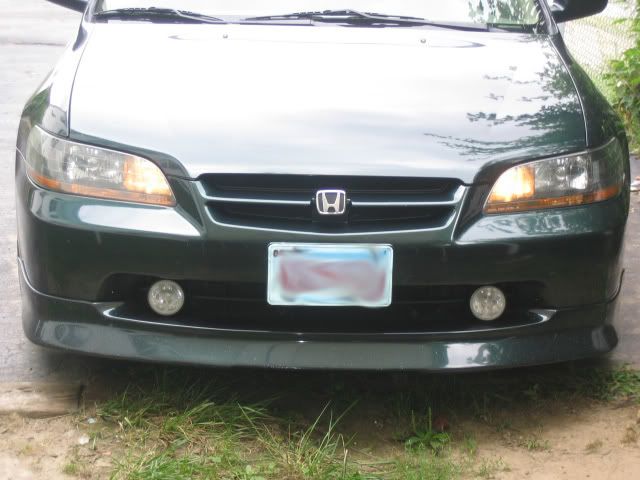

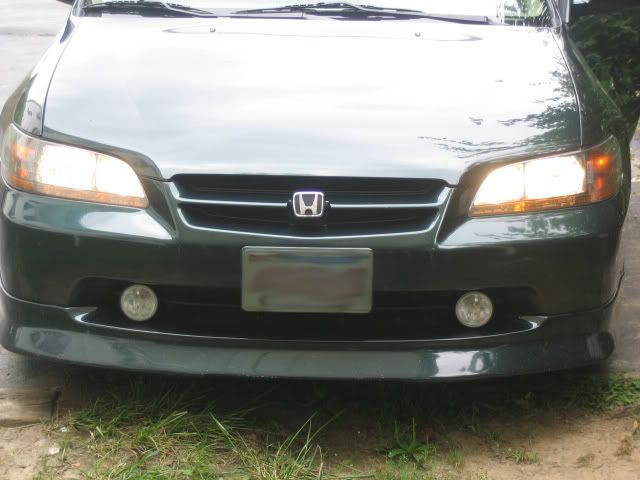

pics of my DRL

[xi0utlawstarix]

finished the DRL and going to do the yellow lexus capsule after ATF change and brake/rotor change.

got a switch to turn off and on the DRL



[iStealBunnieSz]

Whats DRL..? And how did u do it



[xi0utlawstarix]

DRL = daytime running light
its a secret, i cant tell you



[xi0utlawstarix]

All credits goes to this guy.
http://alavigne.net/newHomePage/Motorsports/FeatureReports/S2000/DRL/index.jsp

i added a switch to turn it off/on. this project cost under $100



[shavedaccord]

eh I don't know I don't care much for daytime running lights more annoying than anything especially during mid day and your driving into the sun and people have them on..it's sucks



[xi0utlawstarix]

ok it will be my nighttime driving light with my low beam and foglight



[MikeyMike]

nice, i didnt feel like doin the whole drl thing, i wanted to have control over when they are on or off.. so i toggled them

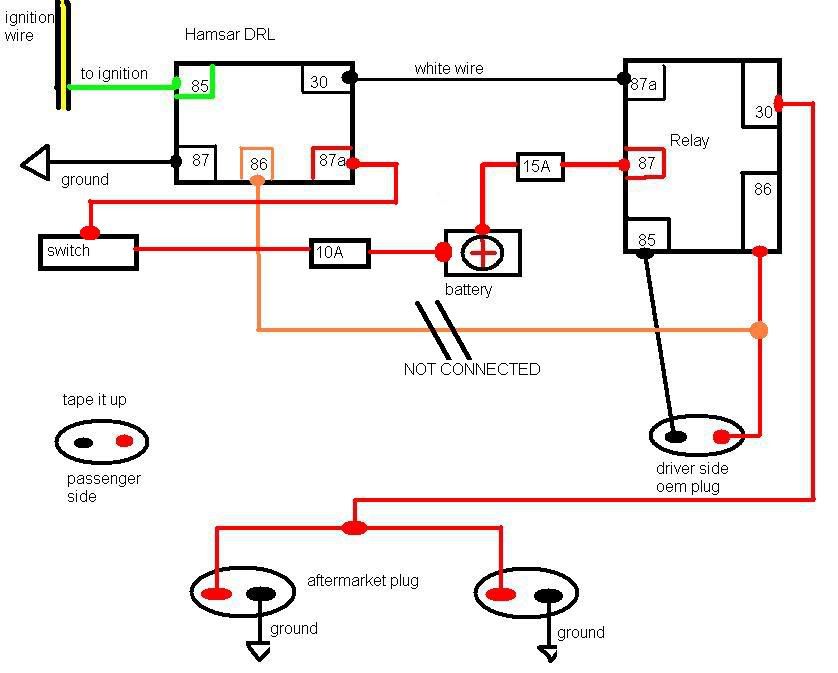

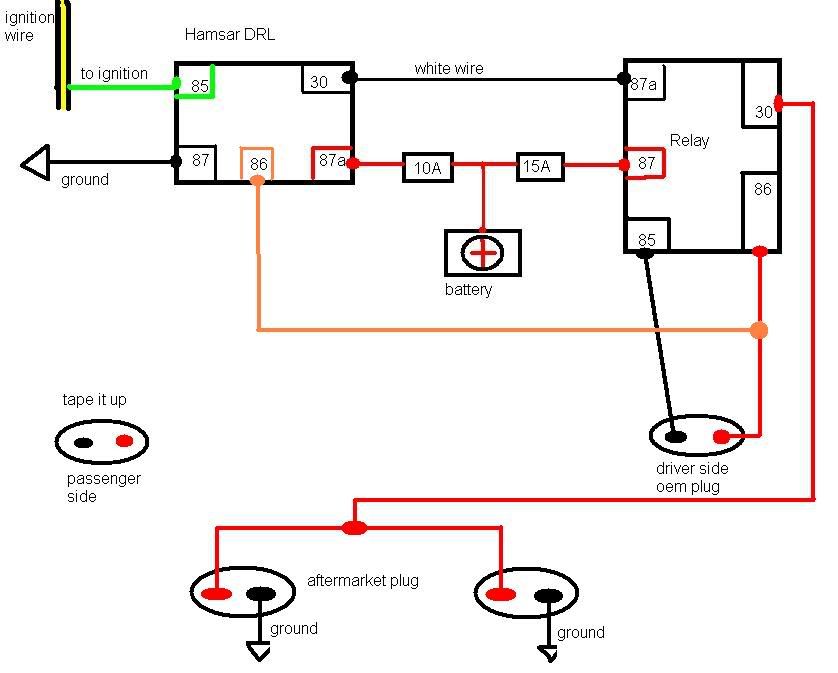

My wiring
http://img.photobucket.com/albums/v282/rocka/fogs.jpg



[dynasty]

i believe there's a Daytime runing light on the fuse box. why not just run it through there? i could be wrong. btw, what bulb did you use? i used to have LEDs on mine but it wasn't cool enough.



[Ryan]

Can you do a write up on this??



[jdmcg3]

will now be re-doing my DRLs. seeing that all i did was swap the lowbeam connectors to the high beams. but now i can ride with out the corner and tail lights being on.


nice work OP. maybe do a write up for 6th gens?
