dizzy check?

f20bcg3

Well-Known Member
Joined
Oct 11, 2013
Posts
527
Reaction score
2
Location
clinton nc
Does anyone kno how to check dizzy wen off the car or if its even possible?


bairdandrew77

Well-Known Member
Joined
Mar 15, 2012
Posts
443
Reaction score
1
Location
Utah
What exactly are you wanting to test on the dizzy?

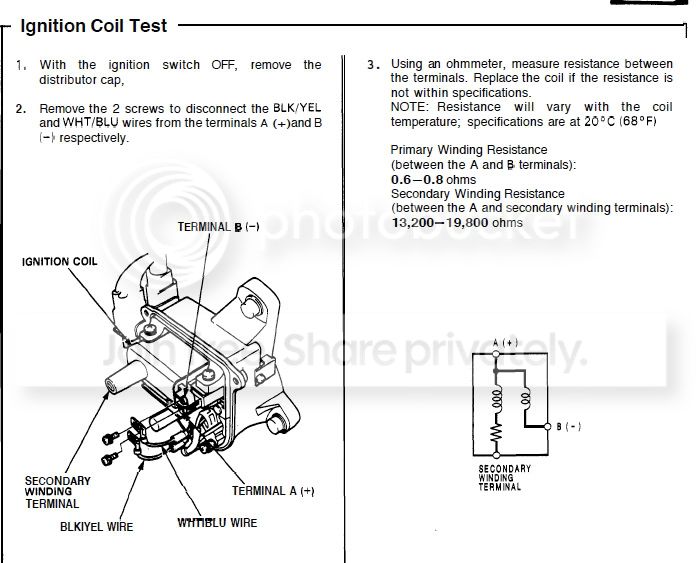

This is for a Civic, but I used it when testing my h23a ignition coil, hopefully it's helpful with yours.


f20bcg3

Well-Known Member
Joined
Oct 11, 2013
Posts
527
Reaction score
2
Location
clinton nc
Was very helpful i was trying to test my ignition coil n yep its bad do u know wat other coils would fit so i can go nuy a replacement but ibalso have a h22a4 dizzy external coil my buddy willing to sell me and it does work does anyone know how to wire that to my stock f23 harness I already tried to Google but could not find a solid answer


bairdandrew77

Well-Known Member
Joined
Mar 15, 2012
Posts
443
Reaction score
1
Location
Utah
Is there any way you can post a picture of them side by side? I don't think they're interchangeable, but I don't want to give you any false information.
