Wheel Fitment Thread

Discussion in 'Suspension, Brakes, Wheels, and Tires' started by xci.ed6, Sep 22, 2007.

  1. xci.ed6

    xci.ed6 Well-Known Member

    Posts:
    2,909
    Likes Received:
    8
    Joined:
    Sep 5, 2007
    Location:
    Tampa Bay
    Before I start, I'd like to ask the moderators to help out on this thread. Wheel fitment is tricky business because of all the dimensions your working with simultaneously, so I'd like to keep this thread as clean as possible.

    Any questions related to the measurements needed, please PM me.

    I want to buy a new set of wheels for my Accord, but I want them to fit perfectly. I'm sure many other people are in the same boat as I. There are a lot of threads about pictures of the wheels, but none about how to get them to fit correctly. Since there are so many variables, there is no one solid number for a perfect fit.

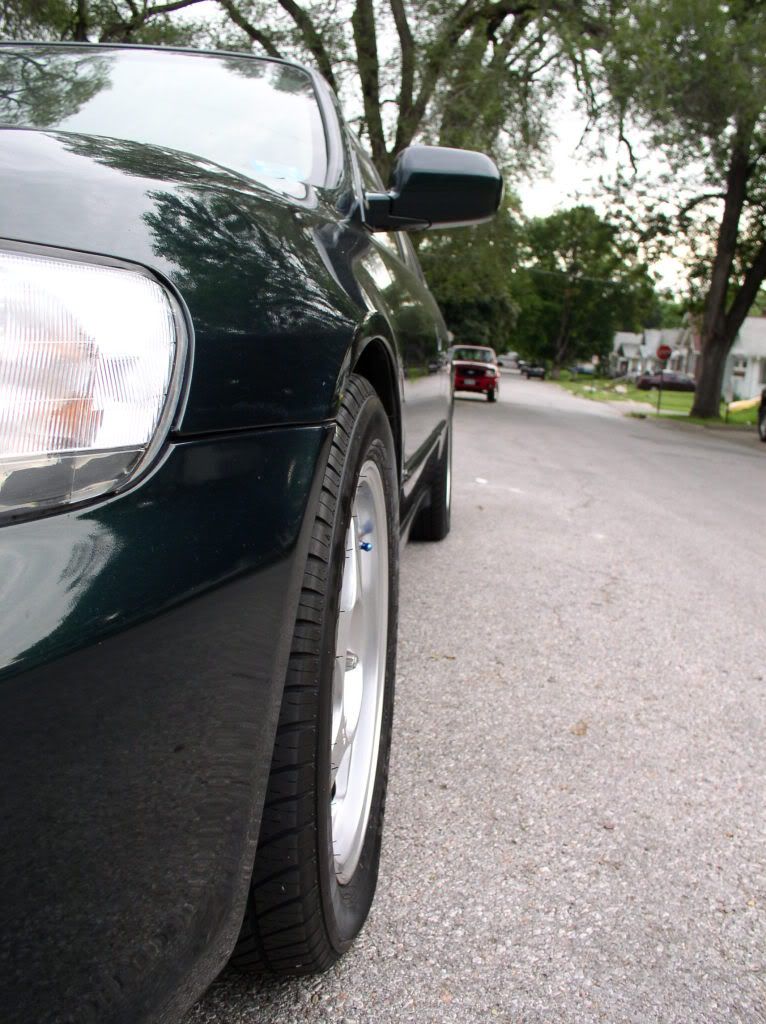

    For starters on this please post a picture that shows how the wheel and tire fit in relation to the fender lips. This angle works well, so do several other angles. You may want multiple pictures if it is a real tight (aka: good) fit.
    [​IMG]

    Next take a ride hight, to do this I use a piece of string with a weight on the end. Dangle the string straight through the center line of the wheel, mark it, and measure it. You will need this for F&R.

    The last measurement you will need is camber f&r. If you don't have access to an alignment rack, bring out the string from the last step. Dangle it straight down through the center line of the wheel and measure the distance between the string and the wheel lip at the top lip and bottom lip. Subtract the bottom from the top, and post it (along with wheel diameter). I'll calculate your camber.

    Finally you need the wheel dimensions including offset, and tire size.

    Summary:
    1-picture
    2-ride hight
    3-camber
    4-wheel size
    5-wheel offset
    6-tire size

    example of good wheel fitment, though the rears could use a 5-10mm spacer.
    [​IMG]

  2. inspired1

    inspired1 High Society

    Posts:
    3,234
    Likes Received:
    5
    Joined:
    Mar 7, 2007
    Location:
    Orange County
    so uh [​IMG]

    2-ride height = -2.25" from stock
    3-camber = + 4.0 degrees from SPC Camber Kit on the Rear, +/- 0 on the Front
    4-wheel size = 18 x 7.5
    5-wheel offset = +45
    6-tire size = 225 / 40 / 18

    Spacers will not work for my car, I have rolled fenders and i still rub my rear.

    does this help?

  3. stupidaznmunkey

    stupidaznmunkey Well-Known Member

    Age:
    32
    Posts:
    252
    Likes Received:
    2
    Joined:
    Jan 6, 2006
    Location:
    Fullerton, CA
    Summary:
    1-[​IMG]
    2-in the picture i was about 3in fr/2.5 rear
    3-~1.5* fr/2.5-3* rear
    4-17x7.5
    5-+55
    6-215/50/17

    no wheel spacers, i rub occasionally on full-lock turns

    im actually lowered 3.5 inches now/3 rear and im fine.

  4. Sakuradrops808B

    Sakuradrops808B Well-Known Member

    Age:
    34
    Posts:
    1,717
    Likes Received:
    4
    Joined:
    Mar 21, 2007
    Location:
    Waikiki, Hawaii
    [​IMG]

    [​IMG]

    I have staggered fitment of 17x8 off+45 front and 17x9 off+45 Rear. With 225/45/17 all around. My normal ride (freeway) height is at 1 finger gap. And my cruising ride (0-45mph city) height is at tire tuck. The top pic shows my car at full slam, But see the camber is not maxed out. Pic on the bottom is about my crusing ride height, but see still less camber. I rolled all my fenders and trim my rear umper/fender tabs, relocated the bolt and mounts. No rubbing period unless i drive fully slammed.

    Watermarks just for security purpose.

    Last edited: Sep 23, 2007
  5. Yogi

    Yogi Well-Known Member

    Age:
    31
    Posts:
    725
    Likes Received:
    2
    Joined:
    Sep 10, 2006
    Location:
    ss
    [​IMG]
    [​IMG]
    [​IMG]


    My Drop Is About 3" Front 2.5/2.7 rear" Rear
    camber i.. dont know... alot... lol
    Work VS-Edition 18X8
    Offset +26 plus a 7mm Spacer +19 all aro und
    Stretched 215/35
    Fender Rolled And Destroyed heheh

  6. MrChad

    MrChad Active Member

    Age:
    51
    Posts:
    28
    Likes Received:
    0
    Joined:
    Mar 23, 2006
    Location:
    chicagoland
    [​IMG]

    BBS 17x7" rims +46mm offset (those crazy germans)
    Tires 225-45-17
    drop 1.75fr 1.5rr Eibach's

    [​IMG]

    No rubbing ever ever ever. I use to rub when I had 225-40-18 tires and 18x7.5 RacingHarts. I was so ticked, I was driving the dragon's tail in TN/NC with this setup catching my rear fenders the entire time, it sucked. Never AGAIN!

    Looked good, drove like crap - never again.
    [​IMG]

  7. t.blackaccord

    t.blackaccord Well-Known Member

    Posts:
    860
    Likes Received:
    1
    Joined:
    Jul 21, 2007
    1-picture
    [​IMG]
    [​IMG]
    2-ride height: Eibach Sportline on Koni Yellow lowest perch (2.5"?)
    3-camber: no camber kit in the front. camber kit in rear. dont know what camber it is set at
    4-wheel size: 18x7.5
    5-wheel offset: +25
    6-tire size: 225/40

  8. JMillerUA6

    JMillerUA6 Grillin' rape steaks

    Age:
    37
    Posts:
    11,931
    Likes Received:
    56
    Joined:
    Jan 9, 2007
    Location:
    W. Hartford, CT
    I deleted all the posts in this thread that weren't posts of members wheels specs/fitment. I think this has the potential of being a VERY helpful thread, and will keep the posting of new "will this wheel fit my car?" thread down to a minimum, and will give us a place to diect people when they post these threads, a lot like the Product Review Thread.

    I would like to encourage members to please post their suspension and wheel setups in this thread because it seems like it never really got off the ground.

    Thanks,

    Justin

  9. sodaks2k

    sodaks2k Well-Known Member

    Posts:
    760
    Likes Received:
    5
    Joined:
    Feb 17, 2009
    Location:
    Omaha
    Front wheel is slightly turned
    [​IMG]

    [​IMG]


    2-I'm on tein S techs with "DIY boat mod" up front
    3-I'm -1.5 all around (no camber kit)
    4-16x7
    5-+42
    6-205/55/16

  10. matt_glesn

    matt_glesn Well-Known Member

    Posts:
    94
    Likes Received:
    0
    Joined:
    Nov 18, 2009
    Location:
    Kansas
    has anyone rolled there fenders? i have the 18x8 Acura a-spec wheels and they rub. may have to roll fenders. does anyone have the same problem or conquered it already w/ wider wheels?
