    Re: HomerJay's 2001 Accord Coupe EX (56K) [UPDATED 2/11!!]

    Virginia. They're not too generous. I wish it at least went to 35%.

    Then again...maybe 35% isn't much darker than 50%...;)...I'm not sure if it's an "offense" the man would harass drivers over or not.

    AngusTEx likes this.
  2. HomerJay

    HomerJay Well-Known Member

    Posts:
    291
    Likes Received:
    8
    Joined:
    Mar 27, 2007
    Re: HomerJay's 2001 Accord Coupe EX (56K) [UPDATED 2/11!!]

    I'm working up a DIY now. This is a project that has taken well over a month...over the course of several (or more...;)) evenings. I finally figured it out and have added custom-molded black emblems to the list of changes:

    [​IMG]

    [​IMG]

    [​IMG]

    DIY is online: DIY: Molding your own emblems

    Last edited: Sep 10, 2012
  3. HomerJay

    HomerJay Well-Known Member

    Posts:
    291
    Likes Received:
    8
    Joined:
    Mar 27, 2007
    Speedhut Gauge Overlays

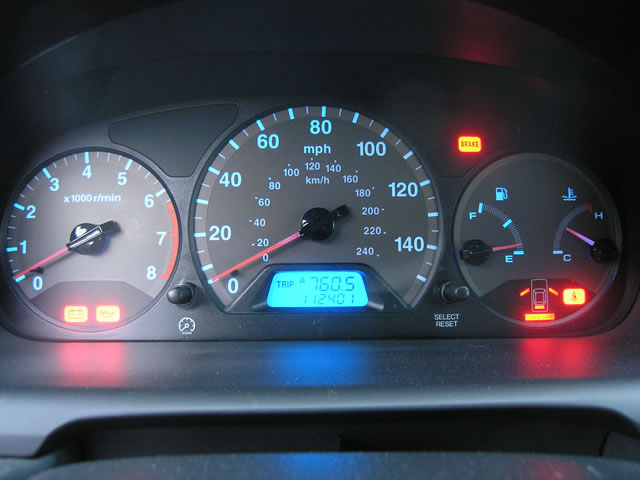

    This is day shot of my original gauges:

    [​IMG]

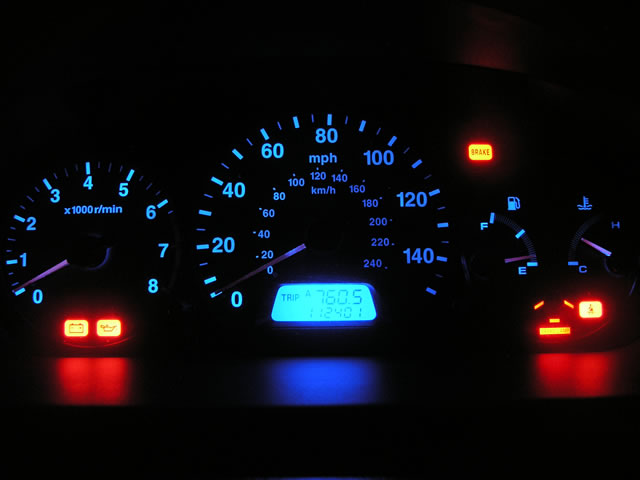

    A night shot (okay, a towel over the dash):

    [​IMG]

    Notice how the needles are painted near the hubs and how the needles themselves are a bit dull. In fact, they don't light up too well at night. The fuel/temp gauge is also not consistently lit from left to right.

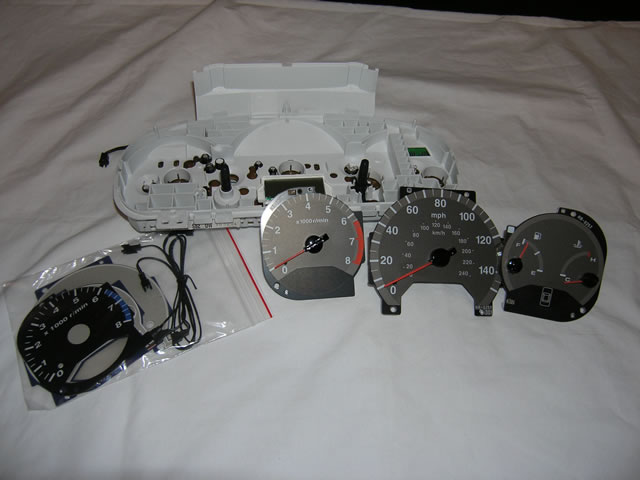

    I bought a new set of gauges to go along with the Speedhut overlays. Here are the the Speedhut overlays, the gauge enclosure and the original gauges.

    [​IMG]

    Tachometer overlay:

    [​IMG]

    Speedometer overlay:

    [​IMG]

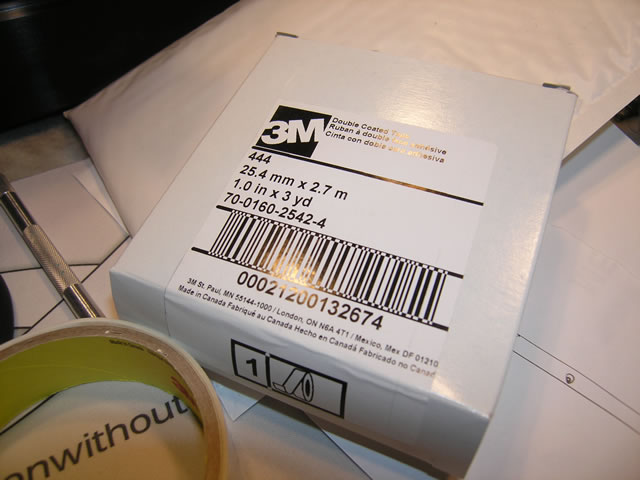

    I tried ordering a roll of this tape but it was special order. They sent two free sample rolls instead...:thumbsup:

    [​IMG]

    The new tachometer. Nice new needles...:)

    [​IMG]

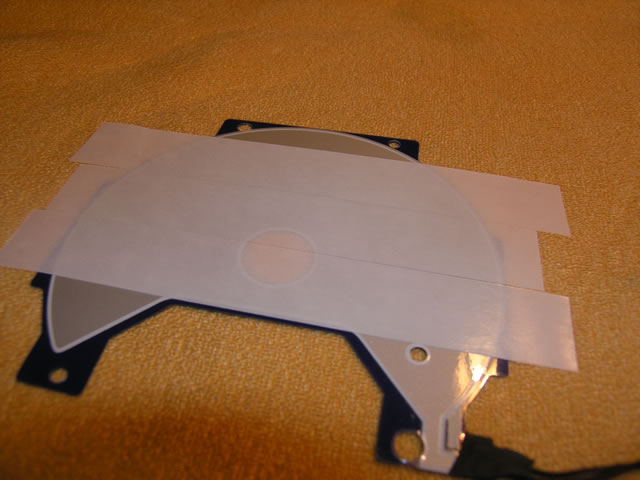

    This is the rear of the speedometer but I put the tape along the back of the tachometer overlay, too:

    [​IMG]

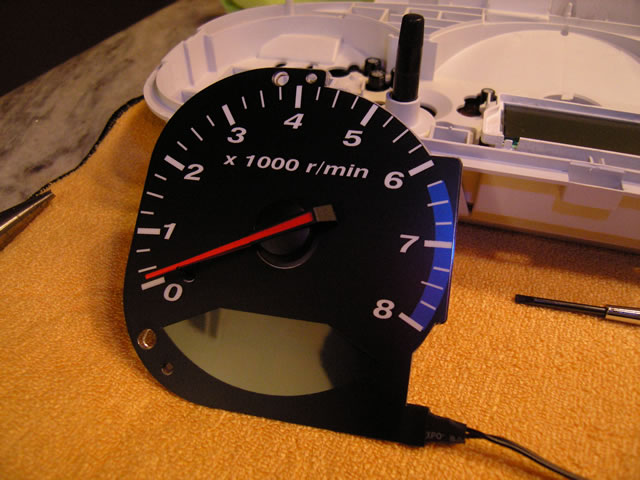

    Installed after quite a lot of trouble. The tape is very tacky. I probably used a bit too much. Oh, well. They're not going anywhere now! Here is the finished tachometer:

    [​IMG]

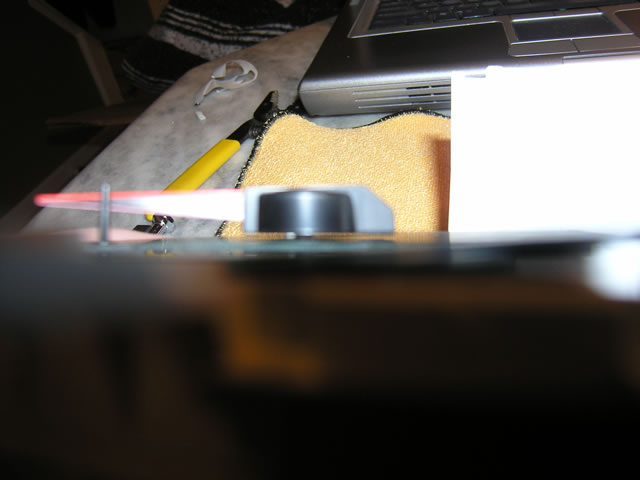

    In all my reading about Speedhut gauges, one thing was clear: these overlays are thick! Well, it appears that they're not so thick anymore. There is ample room for needle movement:

    [​IMG]

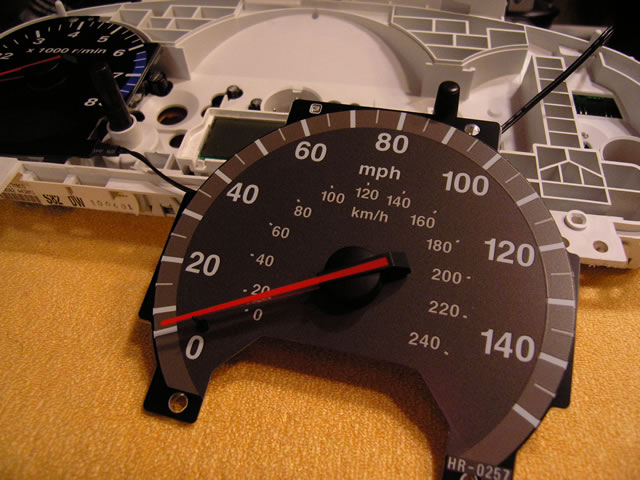

    New speedometer:

    [​IMG]

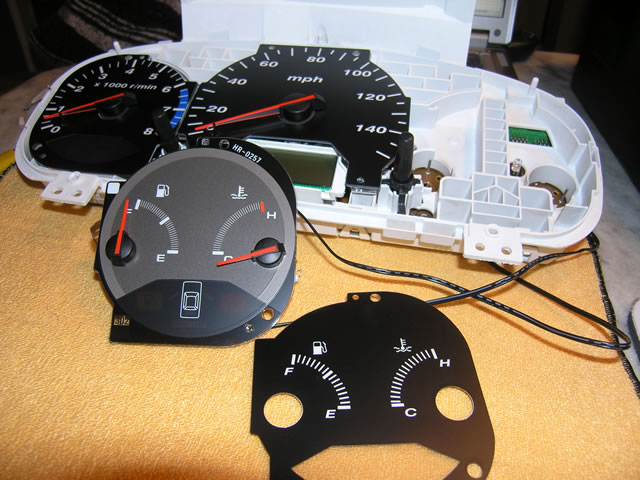

    And finally, the fuel/temp gauge:

    [​IMG]

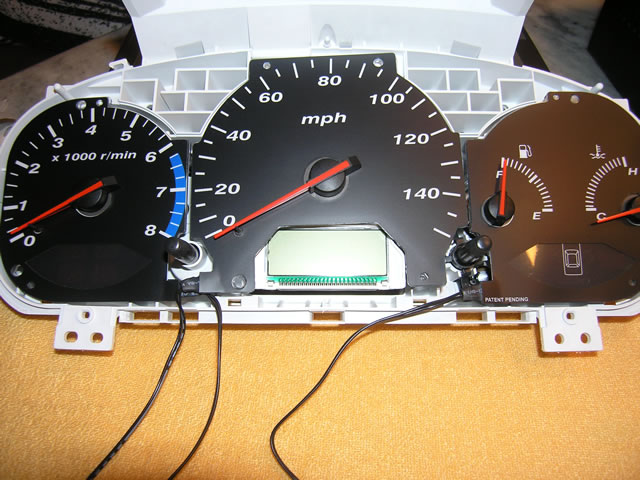

    All overlays in place:

    [​IMG]

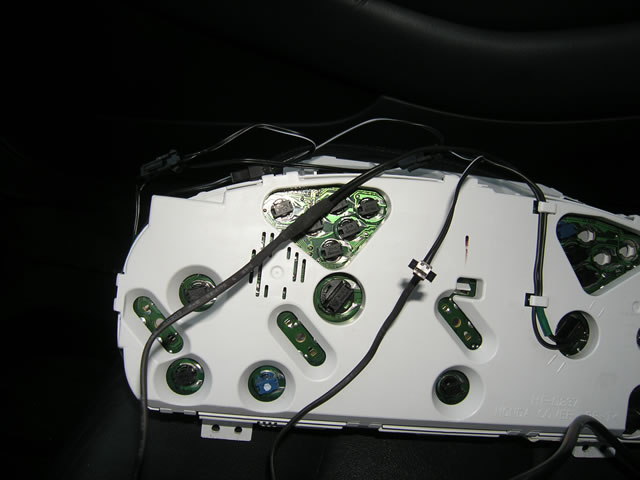

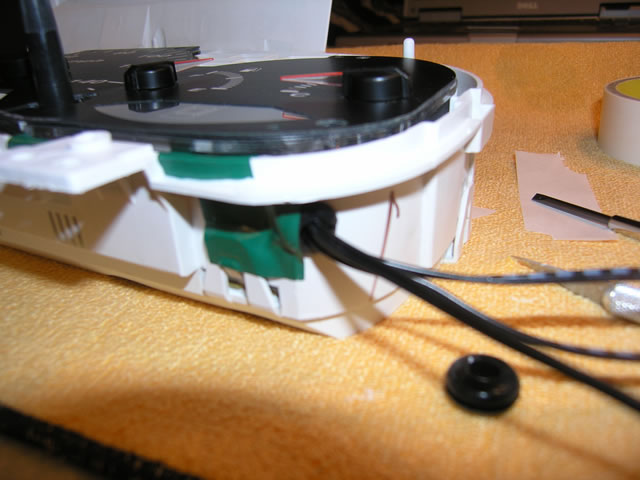

    I routed all the wires along the bottom to the right side of the gauge enclosure. I drilled a hole in the corner of the enclosure and taped a grommet in place:

    [​IMG]

    The green tape at the top of the picture above was accidentally placed across the light source for the indicators below the fuel/temp gauge. Overall, the install went well and I'm happy with the results. Other than a few issues that will require me to take it all apart next weekend...:(...oh, well. At least I have something car-related to work on...;)

    I simply soldered the inverter power leads to the wires that normally run to the overhead lights in front of the gauges (the wires that run from the right lamp socket). The solder point is covered in heat shrink tubing above the second lamp socket.

    [​IMG]

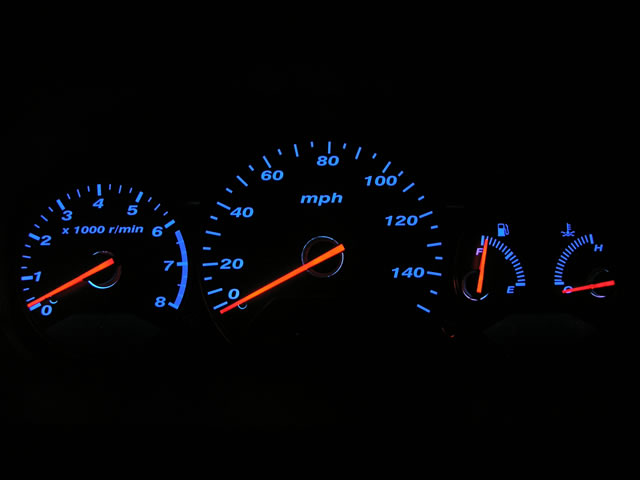

    At night, the difference is HUGE!!...:)

    [​IMG]

    Before:

    [​IMG]

    I noticed I put the speedometer overlay on a bit off. There's no way I'm moving it now! It's only noticable around the needle hub. The OEM gauges are dark grey and the overlays are black. There is a nice brushed appearance to the overlays.

    I'm currently using red bulbs behind the needles. I'm thinking I might switch to white so that the red isn't visible behind the needle hubs. White would possibly blend in better with the blue that leaks out slightly around the needles.

    Very happy with the outcome. It's a HUGE improvement over what I had before. Unfortuntately, I have to revisit this project again next weekend. I stretched the temp gauge hole a bit. The recommendation is to gently use a heat gun to coax it back into place. We'll see how well that goes...:skurred:

    Last edited: Sep 10, 2012
  4. Touch of CLaS

    Touch of CLaS Well-Known Member

    Posts:
    101
    Likes Received:
    0
    Joined:
    Apr 9, 2008
    Location:
    Lawrenceville , GA
    Re: HomerJay's 2001 Accord Coupe EX (56K) [UPDATED 5/10!!]

    good job on the gauges, they look really hot

  5. henreeezy xp

    henreeezy xp Well-Known Member

    Age:
    29
    Posts:
    4,801
    Likes Received:
    5
    Joined:
    Sep 16, 2007
    Location:
    SoCal
    Re: HomerJay's 2001 Accord Coupe EX (56K) [UPDATED 5/10!!]

    ^ +1 :thumbsup:

  6. hiddengamer7

    hiddengamer7 Well-Known Member

    Age:
    28
    Posts:
    4,588
    Likes Received:
    5
    Joined:
    Feb 8, 2007
    Location:
    farmville
    Re: HomerJay's 2001 Accord Coupe EX (56K) [UPDATED 5/10!!]

    Lovin those gauges, they are amazing looking

  7. AngusTEx

    AngusTEx Well-Known Member

    Posts:
    722
    Likes Received:
    0
    Joined:
    Aug 14, 2006
    Location:
    .:.
    Re: HomerJay's 2001 Accord Coupe EX (56K) [UPDATED 5/10!!]

    lookin good buddy, as always

  8. HomerJay

    HomerJay Well-Known Member

    Posts:
    291
    Likes Received:
    8
    Joined:
    Mar 27, 2007
    Fidanza Flywheel and Centerforce Dual Friction Clutch

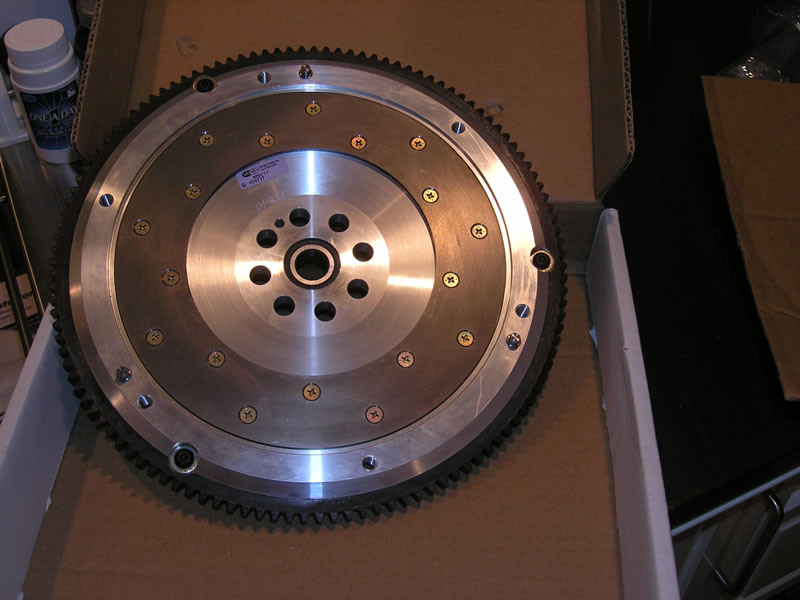

    Well, the time has come for a new clutch. Based on reviews in the review thread, I went with an 8# Fidanza Flywheel...

    [​IMG]

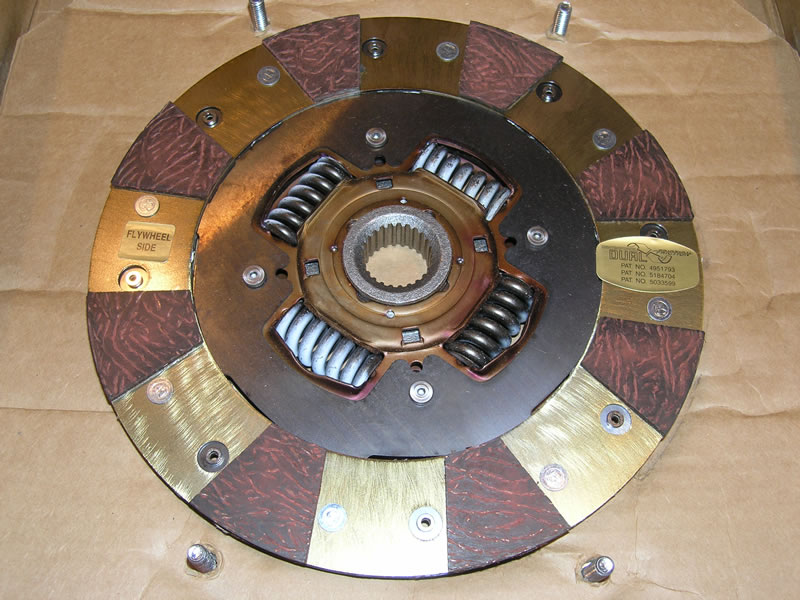

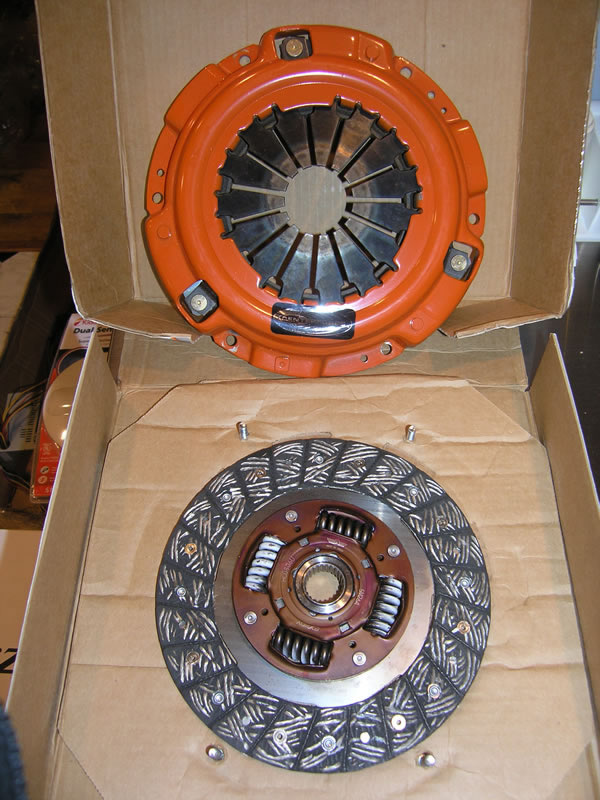

    ...and Centerforce Dual Friction Clutch...

    [​IMG]

    [​IMG]

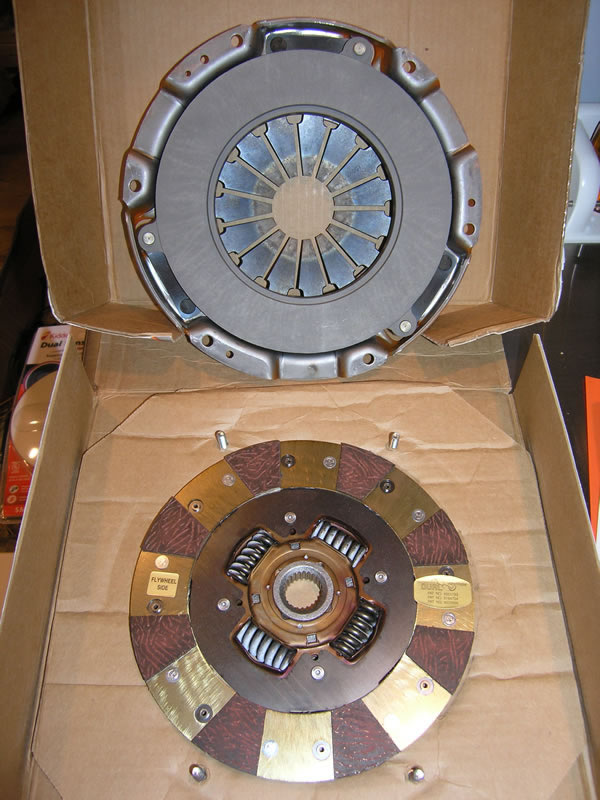

    Pressure plate side:

    [​IMG]

    Flywheel side:

    [​IMG]

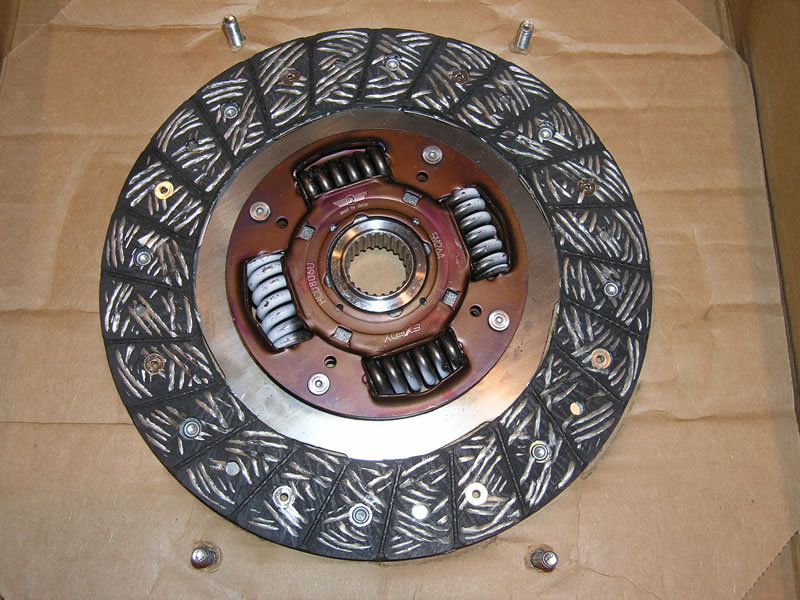

    Maybe Exedy sourced the disc damper components?

    [​IMG]

    Still waiting on a few more components (throwout bearing, Innovative Mounts) before heading over to the shop to have it installed. Having to baby my original clutch since it has started slipping.

    Last edited: Sep 10, 2012
  9. jonsey09

    jonsey09 Member

    Posts:
    13
    Likes Received:
    0
    Joined:
    Sep 22, 2009
    Location:
    texas
    Re: HomerJay's 2001 Accord Coupe EX (56K) [UPDATED 9/29!!]

    dang man that blows but everything will work, out i love the blue dash lights looks pretty sweet

  10. RedRyder

    RedRyder Be a better driver

    Posts:
    19,182
    Likes Received:
    62
    Joined:
    Sep 5, 2008
    Location:
    Fawking, OH
    Re: HomerJay's 2001 Accord Coupe EX (56K) [UPDATED 9/29!!]

    Very nice work, clean job man. They look great! I would think the red flare from the red needle bulb at the base would look cool contrasting with the blue numbers, etc. Either way though, shaWEEET!

    Also I like your car.
